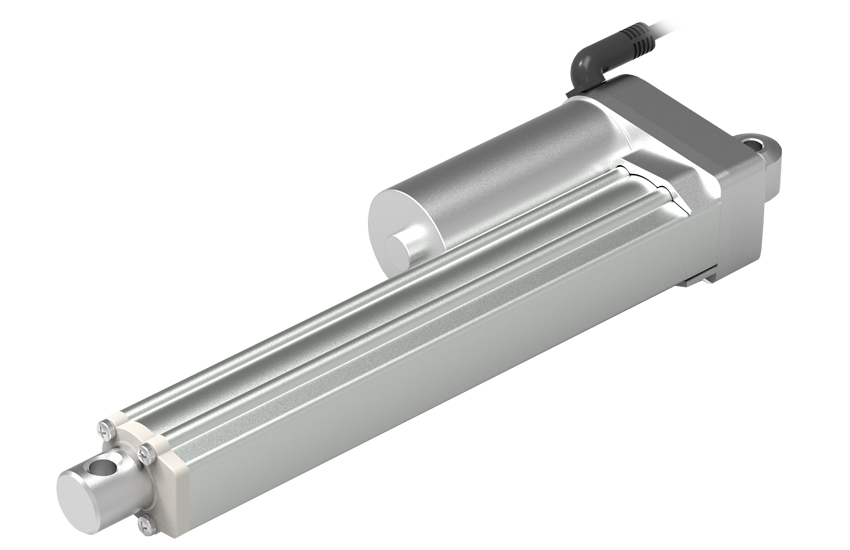

HTA150

Series

Linear Actuator

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

HTA150 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP65 Alternatively, HT Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..


General Features



  • Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
  • Maximum load: 1,200N
  • Maximum speed at full load: 30mm/s ( load 50N)
  • The slowest speed at full load: 5mm / s (Load 1,200N)
  • Stroke: 30~900mm
  • Minimum installation size: Stroke + 105 mm (S<300mm)
  •                                        :Stroke + 120 mm (S>300mm)
  • Potentiometer installation size: Stroke + 135 mm(30≤Stroke<300)
  •                                                    Stroke + 170 mm(300≤Stroke<450)
  • Color: Silver gray
  • IP rating: IP65D
  • Operational temperature range: -20°C~+45°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%)
  • Other options: Potentiometer
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)




Model Selection










HTA150 Series Load±10%(N) Speed±2(mm/S)













Load 1200 750 500 400 300 200 100 50
Speed 5 10 15 20 30 30 48 80






HTA150 Series Stroke ±2(mm) Mounting dimensions±2(mm)












Stroke 50 100 150 200 250 300 350 400 450
Size 155 205 255 305 355 420 470 520 570
Size(W/POT) 185 235 285 335 385 470 520 570 620










Drawing Standard Dimension (mm)
