HTA24

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

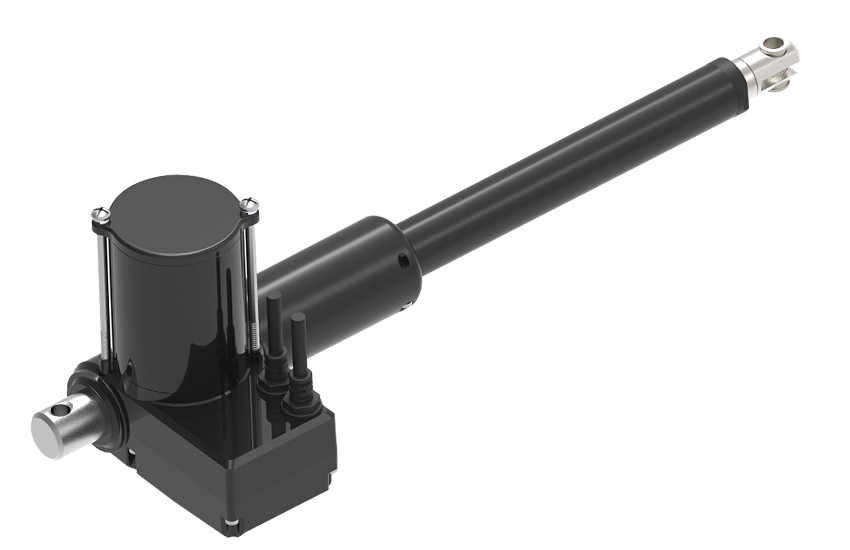

GeMinG Chrome’s newly developed HTA24 screw-type push rod electric window opener, electric window opener for pig farms and chicken houses, ventilating window reducer motor, breeding electric window opener, chicken house and duck house electric ventilating window push rod, push rod The surface is made of special materials with anti-corrosion treatment, especially suitable for agriculture, animal husbandry, and industrial equipment. Large-thrust window opener can be applied to larger window and top window, explosion-proof and fire-proof function, strong locking force, signal transmission function, protection level up to IP69K


Product Features


Motor type: AC motor
Voltage: 220VAC
Maximum load: 4,500N/pull/push
The fastest speed at full load: 4.8 mm / s (load 3,500N)
The slowest speed at full load: 4.2 mm / s (load 4,500N)
Stroke: 200~900mm
Minimum size: stroke + 155MM
Colour: Black
IP rating: IP66
Operating temperature range: -45°C~+75°C
Full performance operating temperature range: +5°C~+45°C
Higher duty cycle (25%)
Other options: 10K potentiometer
High-strength metal zinc alloy housing protects motors and gears
Limit switch (built-in: not adjustable)
產品數據表
HTA24 Series 负载 ±10%(N) 速度 ±2(mm/S)
最大负载(N) 4,500
空载速度(MM/S) 4.8
负载速度(MM/S) 4.2
HTA24 Series 行程 ±2(mm) 缩回长度 ±2(mm)
标准行程(MM) 200 300 350 400 450 500 550 600
缩回长度(MM) 355 455 505 555 605 655 705 755
产品重量(KG) 2.6 2.9 3.2 3.5 3.8 4.1 4.4 4.7

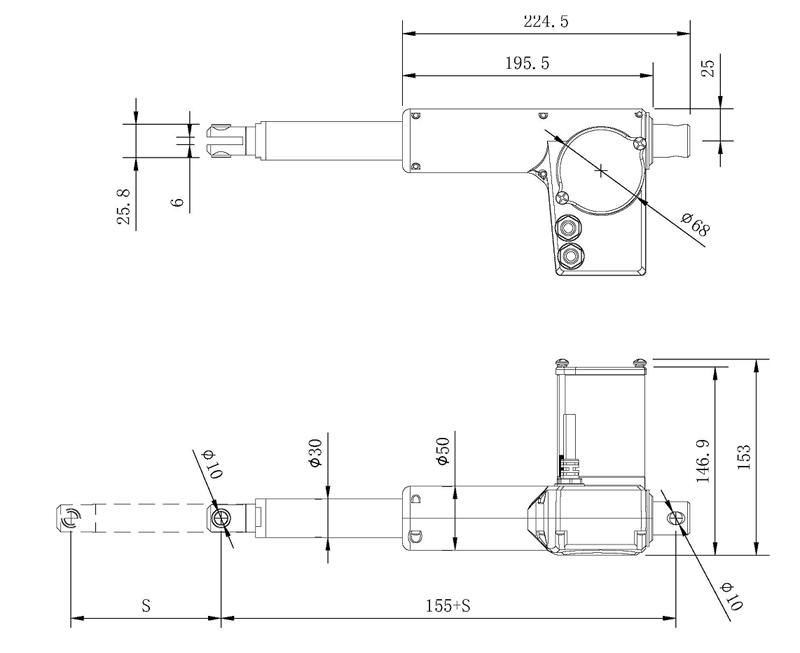

工程圖 规格標準尺寸 (mm)
S: 行程
L: 縮加安裝尺寸
L=行程 +155MM
Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator
型號代碼選項規律: HTA24 - 电压- 速度 - 行程 - 缩回最小长度 / 伸出最大长度 - 负载 - 安装方式
