HTW73

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

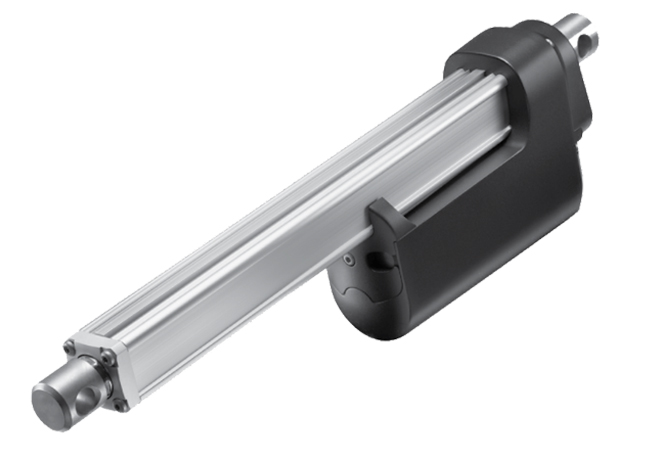

HTW73 series in-line linear actuators are designed for heavy-duty applications developed in harsh environments where there is a need for high lifting capacity and retention. GeMinG provides well-known quality of HTW73 , which assures you of long-life maintenance-free products...


General Features

  • Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
  • Maximum load: 12,000N in pull/push
  • The slowest speed: 6.5mm / s (Load 12,000N)
  • Stroke: 50mm~800mm
  • Minimum dimensions: Stroke + 200 mm(S<300mm)
  •                                  Stroke + 250 mm (S>300mm)
  • Color: Silver gray or black
  • IP rating: IP66
  • Operational temperature range: -20°C~+45°C
  • Higher duty cycle (25%)
  • Other options: Hall sensor, Potentiometer
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)



產品數據表
HTW73 Series 负载 ±10%(N) 速度 ±2(mm/S)
最大负载(N) 12,000 10,000 7,500 6,500 5,000 4,000 2,000 1,000
空载速度(MM/S) 6.5  8.5  13.3 20 25 30 40 60
负载速度(MM/S) 4.0  6.1 9.5 11 14 15 20 30
HTW73 Series 行程 ±2(mm) 缩回长度 ±2(mm)
标准行程(MM) 100 150 200 250 300 350 400 450 500
缩回长度(MM) 300 350 400 450 500 550 600 650 750
产品重量(KG) 3.6 3.9 4.2 4.5 4.8 5.1 5.5 5.9 6.5

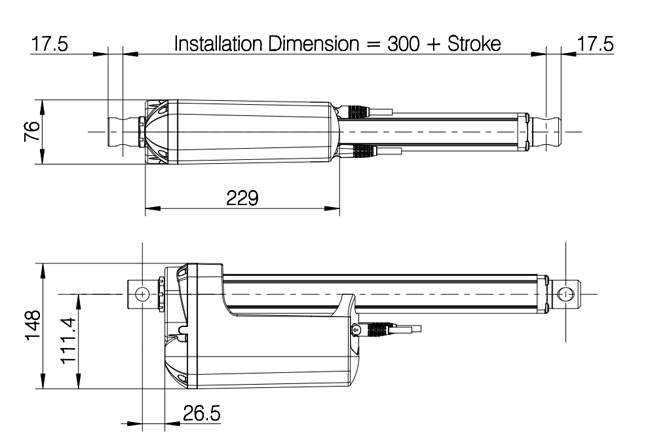

工程圖 规格標準尺寸 (mm)
S: 行程
L: 縮加安裝尺寸
L=行程 +200MM(行程超過500=行程+250MM)
Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator
型號代碼選項規律: HTW73- 电压- 速度 - 行程 - 缩回最小长度 / 伸出最大长度 - 负载 - 安装方式
