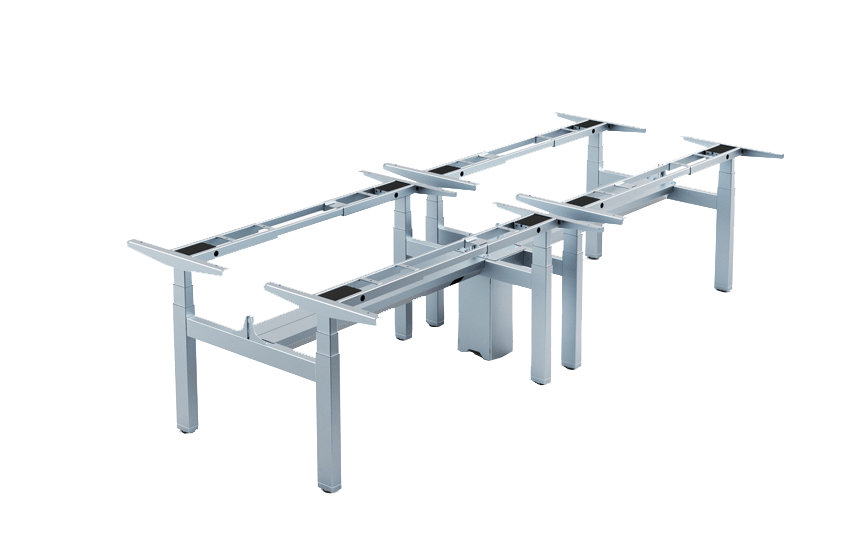

GeMinG's highly adjustable desk base-HT-S184 is an essential design for an office power desk. A digital display switch with four preset memories helps to set the preferred and comfortable position. When you press the HTS7-driven button on the programming box, the height ranges from a maximum of 45.3 inches to a minimum of 25.6 inches, and the speed of both feet is 0.79/second. The HT-S184 electric desk allows you to transform from a traditional sitting position to a flexible standing position, one of the best products for creativity and productivity. Our standard model does not have a beam, if you want to add this accessory, please contact us!..

General Features

  • Column: Eight columns
  • Load Capacity: 1000N
  • Speed: 38mm/s
  • Adjustable frame: 1080-1800mm or custom
  • Input Voltage: 110-240V widely voltage
  • Memory position: 4 memory position set
  • Brilliant digital LED display indicates height selection
  • Smooth and gentle soft-start and soft-stop
  • 0.1W standby Power eco friendly
  • Anti-collision technology to prevent damage
  • Duty Cycle: 10% max 2 min, continuous use
  • Package: 755*330*160mm
  • Gross Weight: 18.85kgs
  • Warranty: 5 years for the machinery, 2 years for the electric.

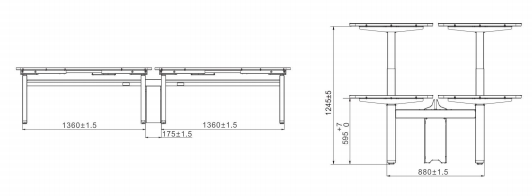

                      Standard Dimension (mm)
