在現代工業製造、經濟發展中，很大一部分和減速電機有一定的關係，在減速電機中，行星減速機的應用有著舉足輕重的不可替代性，鉻銘傳動簡單的介紹下行星減速機的優點和用途；行星減速機優點:具有高精度、高鋼性、高負載、率、高速比、高壽命、低慣性、低振動、低噪音、低溫升、外觀美、結構輕小、安裝方便、定位等特點,適用於交流伺服馬達、直流伺服馬達、步進馬達、液壓馬達的增速與減速傳動。行星減速機的傳動效率一般的都在90%以上，應用非常廣泛..
主要用途
Motor unit data sheet
|
motor model model
|
Rated voltage V DC
|
No-load speed R/MIN
|
No-load current MA
|
Rated speed R/MIN
|
Rated torque G.CN
|
Output Power W
|
Rated current A
|
Stalling torque G.CN
|
Stall current A
|
|
395-12K |
12 |
8000 |
200 |
6600 |
110 |
8.5 |
1.3 |
660 |
6.5 |
|
395-24K |
24 |
8000 |
100 |
6800 |
110 |
8.5 |
0.6 |
670 |
3.2 |
Planetary geared motor data sheet
| Model | Reduction ratio | 1：3.7 |
1：5.2 |
1：14 |
1：19 |
1：27 |
1：51 |
1：71 | 1：100 |
1：139 |
1：189 |
1：264 |
1：369 |
1：515 |
1：721 |
|
|
|
No-load speed |
Rpm |
2100 |
1500 |
560 |
410 |
280 |
150 |
105 |
78 |
55 |
41 |
30 |
21 |
15 |
10.5 |
|
Rated torque |
Kg.cm |
0.3 |
0.4 |
1.0 |
1.4 |
2.0 |
3.3 |
4.6 |
6.5 |
9.0 |
11 |
15 |
20 |
20 |
20 |
|
|
Rated speed |
Rpm |
1800 |
1300 |
500 |
360 |
250 |
135 |
95 |
69 |
50 |
37 |
26 |
18.6 |
13.8 |
10 |
|
|
Instant torque |
Kg.cm |
0.6 |
0.8 |
2.0 |
2.8 |
4.0 |
6.0 |
9.0 |
12 |
18 |
22 |
30 |
40 |
40 |
40 |
|
|
|
No-load speed |
Rpm |
2100 |
1500 |
560 |
410 |
280 |
150 |
105 |
78 |
55 |
41 |
30 |
21 |
15 |
10.5 |
|
Rated torque |
Kg.cm |
0.3 |
0.4 |
1.0 |
1.4 |
2.0 |
3.3 |
4.6 |
6.5 |
9.0 |
11 |
15 |
20 |
20 |
20 |
|
|
Rated speed |
Rpm |
1800 |
1300 |
500 |
360 |
250 |
135 |
95 |
69 |
50 |
37 |
26 |
18.6 |
13.8 |
10 |
|
|
Instant torque |
Kg.cm |
0.6 |
0.8 |
2.0 |
2.8 |
4.0 |
6.0 |
9.0 |
12 |
18 |
22 |
30 |
40 |
40 |
40 |
|
|

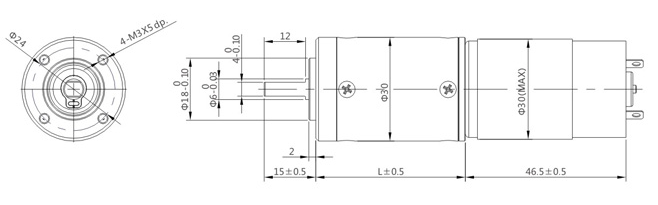

L(MM) |
27.5 |
35.5 |
43.5 |
51.5 |
||||||||||||
|
Swing gap |
o |
0.7 |
0.8 |
1.0 |
1.0 |
|||||||||||
