HTK55

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

GeMinG's HTK55 series in-line linear actuators are designed for low-load industrial applications requiring up to IP68K dust and liquid ingress protection. Is a powerful product for industrial applications. The compact size allows the K55 to install a small space in the application without having to worry about its effects. Hall sensors are optional for the K55, allowing synchronization and position feedback, ventilation systems or food and beverage automation equipment and other industry performance ranges....

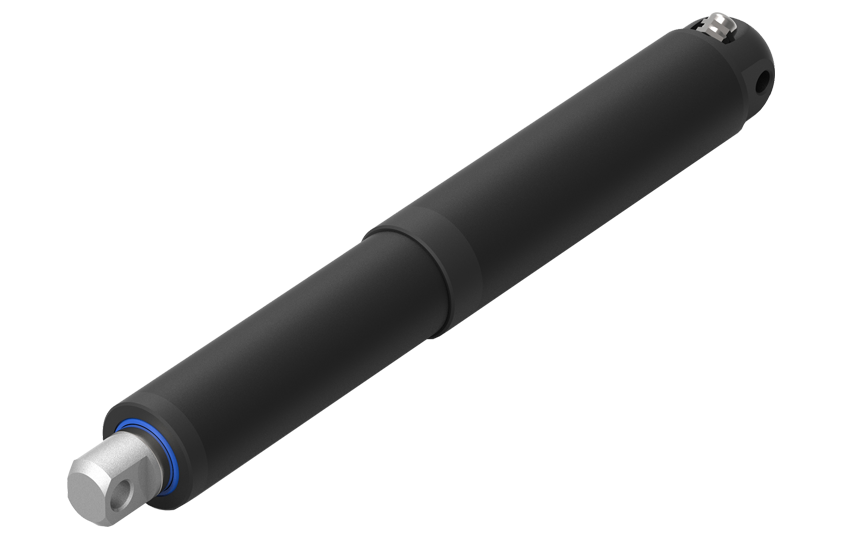

General Features            Physical Photos


  • Voltage of motor: 12V DC, 24V DC, 36V DC
  • Maximum load: 4,500N in pull/push
  • Maximum speed: 100mm/s ( load 100N)
  • The slowest speed: 4mm / s (Load 4,500N)
  • Stroke: 50~1000mm
  • Minimum dimensions: Stroke + 320 mm
  • Color: black
  • IP rating: IP67D
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • Other options: Hall sensor, control system
  • High-strength metal 406 carbon steel housing protects motors and gears
  • Built-in limit switches (not adjustable)





Model Selection
HTKC55 Series Load±10%(N) Speed±2(mm/S)
Max Dynamic Load:N
4,500 2,700 1,800 900 600 300 200 150
Max Static Load:N
4,500 3,000 1,800 900 600 300 200 150
No-Load Speed: mm/s
4.0  7.2 10 21 30 62 94.1 106.7
Full-Load Speed: mm/s
3.4 5.5 8.5 17.1 25.1 50.2 75.3 85.3
HTKC55 Series Stroke ±2(mm) Mounting dimensions±2(mm)
Stroke:mm 100 150 200 250 300 350 400 450 500
Minimum installation size:mm 420 470 520 570 620 690 740 790 840
Actuator Weight:kg 3.6 4.1 4.6 4.9 5.2 5.6 6.1 6.4 6.7

Drawing

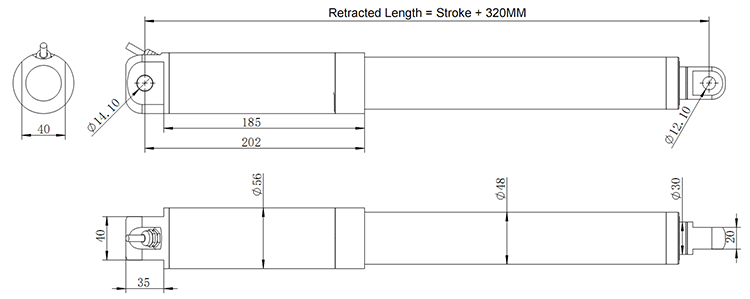

Standard Dimension (mm)




S: Stroke


L: Retracted length


L=Stroke +320mm


Without hall sensor

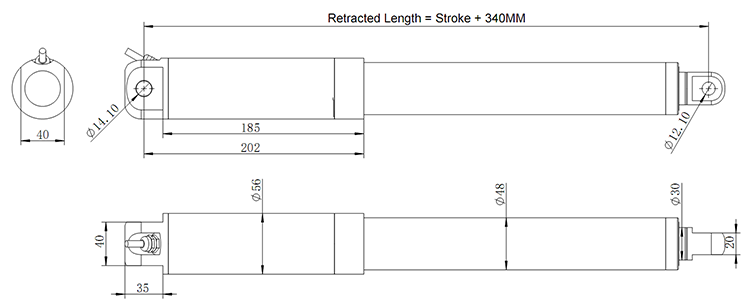

S: Stroke

L: Retracted length
L=Stroke +340mm

Built-in hall sensor

Code selection: HTKC55 - voltage - speed - stroke - minimum installation size / maximum installation size - load
