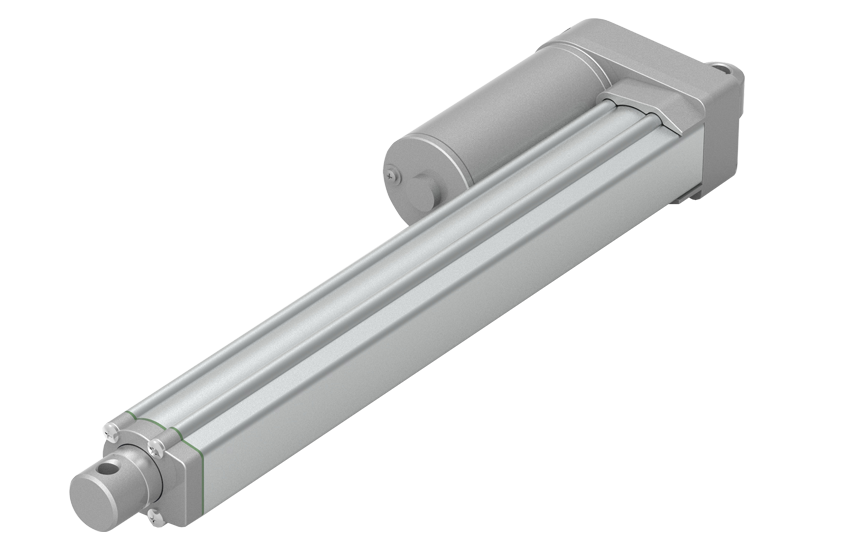

HTA15 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP65 Alternatively, HT Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..

General Features

• Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
• Maximum load: 1,800N
• Maximum speed at full load: 80mm/s ( load 50N)
• The slowest speed at full load: 5mm / s (Load 1,800N)
• Stroke: 30~900mm

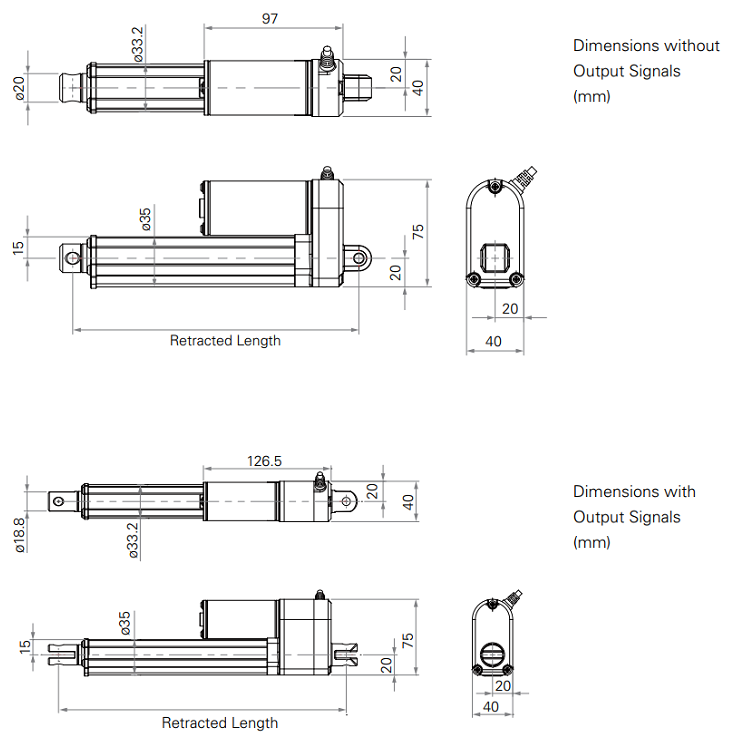

• Minimum installation size: Stroke + 105 mm (S＜300mm)
•                                        ：Stroke + 120 mm (S＞300mm)
• Potentiometer installation size: Stroke + 135 mm(30≤Stroke＜300)
•                                                    Stroke + 170 mm(300≤Stroke＜450)
• Color: Silver gray
• IP rating: IP65D
• Operational temperature range: -20°C~+45°C
• Operational temperature range at full performance: +5°C~+45°C
• Higher duty cycle (25%)
• Other options: Potentiometer
• High strength metallic zinc alloy housing protects motor and gear
• Built-in limit switches (not adjustable)
