HTW76

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

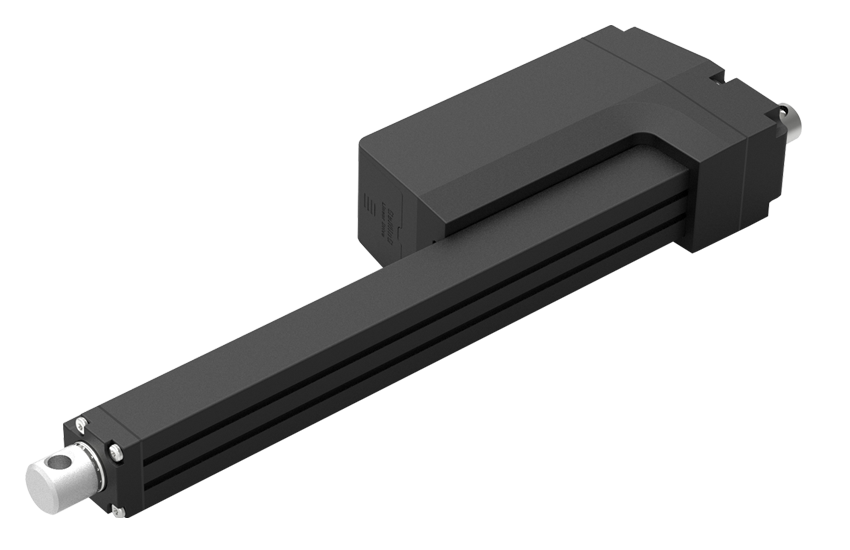

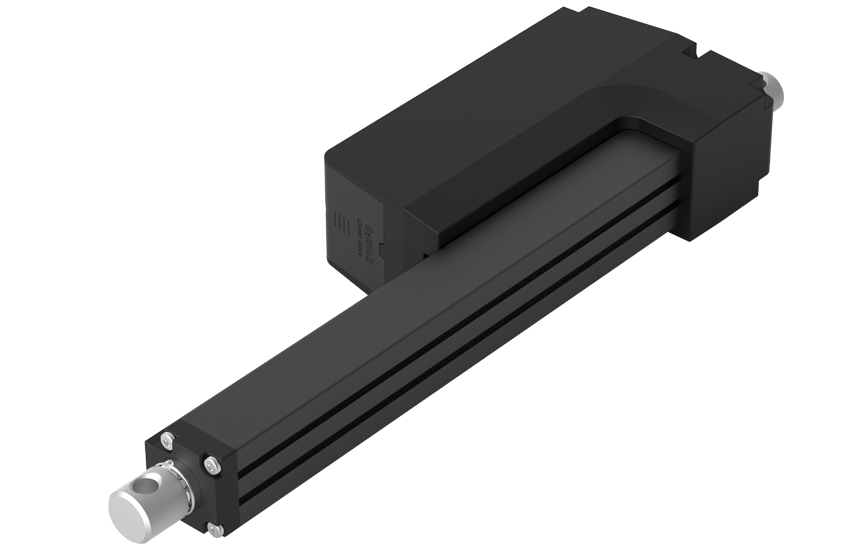

HTW76 industrial linear actuator is a very powerful actuator designed for various app such as agricultural machinery, construction machinery, and industrial machinery. Difficult applications Require equally demanding actuator actuators. GeMinG's HTW76 series linear actuators are designed for heavy-duty applications developed in harsh environments where there is a need for high lifting capacity and retention. GeMinG assures you of long-life maintenance-free products...


General Features


  • Voltage of motor: 12V DC,24V DC,36V DC, 48VDC
  • Optional: brushless motor, built-in drive
  • Maximum load: 16,000N(Push), 16,000N(Pull)
  • Maximum No-load speed: 110mm/s
  • Full-Load Speed: 5mm/s
  • Stroke: 50~1300mm
  • Minimum dimensions: Stroke+ 250 mm
  • Color: black
  • IP rating: IP66
  • Operational temperature range: -45°C~+75°C
  • Higher duty cycle (25%)
  • Built-Limit Switch (not adjustable)
  • External Limit Switch (adjustable)
  • Screw selection: Trapezoidal Screw, ball Screw
  • High-strength N steel housing protects motors and gears
  • Other options: Hall sensor, Potentiometer,External reed switch can be adjusted freely
  • Control options: external control, built-in control, synchronous control, Hall control,

Product data sheet
Performance/Model Code W76-*-A W76-*-B W76-*-C W76-*-D W76-*-E W76-*-F W76-*-G W76-*-H W76-*-I W76-*-J W76-*-K
Input voltage
VDC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
12V DC
24V DC
36V DC
48V DC
Stroke range
MM
50-600 50-600 50-700 50-800 50-800 50-800 50-900 50-1200 50-1500 50-1500 50-1500
Dynamic load
N
16,000 13,000 10,000 7,200 5,500 3,500 3,000 2,300 1,500 1,000 650
Static load
N
25,000 15,000 10,000 7,200 5,500 3,500 3,000 2,300 1,500 1,000 650
No-load speed
MM/S
4.5 6.2 7.9 12 16 25 28 37 55 83 110
Full load speed
MM/S
3.3 4.9 6.3 10 13 20 22 30 45 67 90
No load/load current
A
1.6/12.5 1.6/12.5 1.6/12.5 1.6/12.5 1.6/12.5 1.6/12.5 1.6/12.5 1.6/12.5 1.6/12.5 1.6/12.5 1.6/12.5
Screw type
Ball / trapezoid
Trapezoidal/Ball Screw Trapezoidal/Ball Screw Trapezoidal/Ball Screw Trapezoidal/Ball Screw Trapezoidal/Ball Screw Trapezoidal/Ball Screw Trapezoidal/Ball Screw Trapezoidal/Ball Screw Trapezoidal/Ball Screw Trapezoidal/Ball Screw Trapezoidal/Ball Screw
Operating temperature
-40
+70
-40
+71
-40
+72
-40
+73
-40
+74
-40
+75
-40
+76
-40
+77
-40
+78
-40
+78
-40
+78
Protection level
static / dynamic
IP65/IP66 IP65/IP66 IP65/IP66 IP65/IP66 IP65/IP66 IP65/IP66 IP65/IP66 IP65/IP66 IP65/IP66 IP65/IP66 IP65/IP66
Actuator weight
KG@Stroke
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
7.5@100MM
100+0.8KG
W76 Stroke installation size reference Stroke ±2(mm) Retraction length ±2(mm)
Standard stroke(MM) 50 100 150 200 250 300 350 400 500 600 700
Retraction length(MM) 300 350 400 450 500 550 600 650 750 900 1000

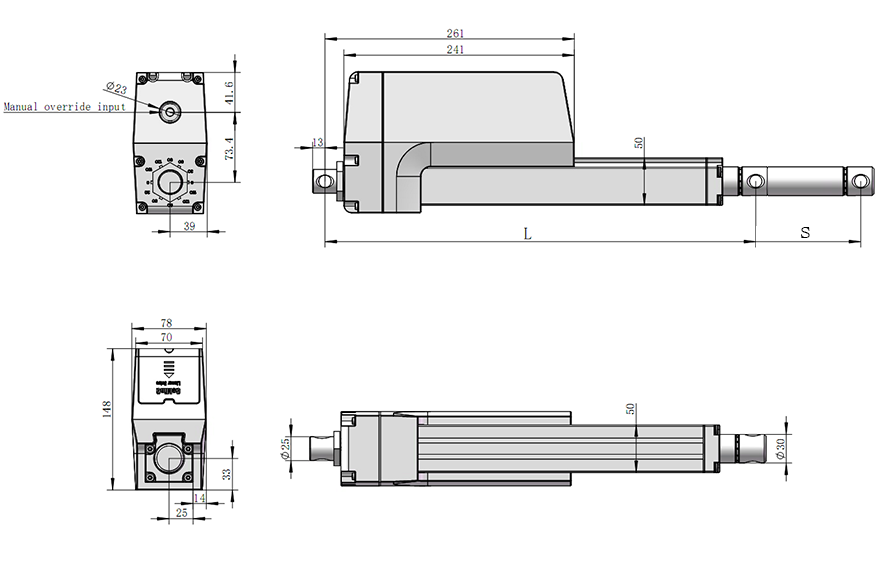

Drawings Specifications standard size (mm)
S: Stroke
L: Retraction length
L=Stroke S+250MM(Special S+200MM)
Model code option rules: HTW76-Voltage-Speed-Stroke-Retracted installation dimensions-Extended connector-Bottom connector-Installation angle-Cable requirements-Control requirements
