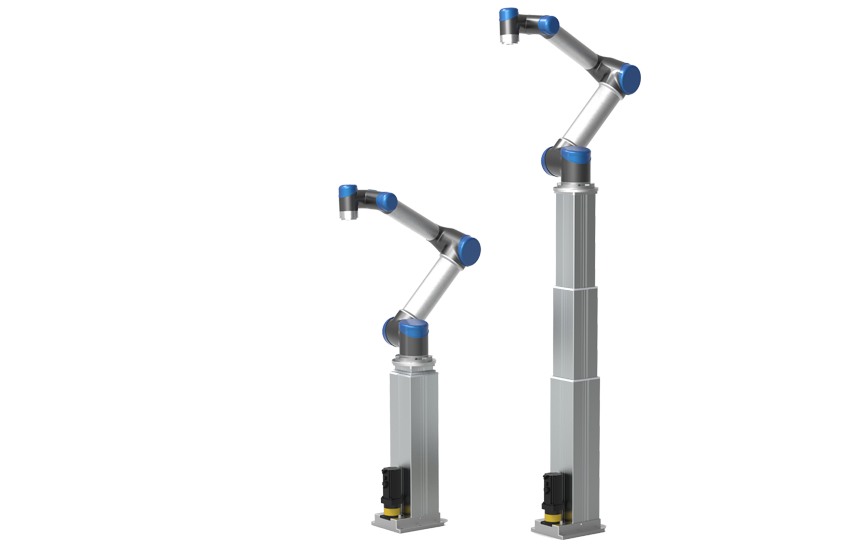

| HTD3 has an extended working range, the collaborative robot can lift up to 3000 mm vertically, and has a compact retracted height. It has a sturdy column design suitable for industrial use, vibration-free movement and a plug-and-play solution that is almost maintenance-free. It has a hardware interface compatible with any robot and controls CAN via TCP/IP, saving costs and increasing productivity. The collaborative robot combined with the GeMinG lifting system provides a cost-effective solution to upgrade existing assembly workshops. |
| Product Features |
|
Voltage: 48V DC, 220V AC Motor Options: DC or AC servo motor Maximum thrust: 4,000N Speed under load: 100 mm/s (2,000N load) Speed under load: 200 mm/s (1,000N load) Minimum installation dimensions: Stroke/2 + 350mm Dynamic lateral torque: 3,000Nm Static lateral torque: 400Nm Operating temperature range: -45°C to +75°C Protection rating: IP54 Control options: Synchronous, standalone, integrated, CAN bus,EtherCAT bus |
