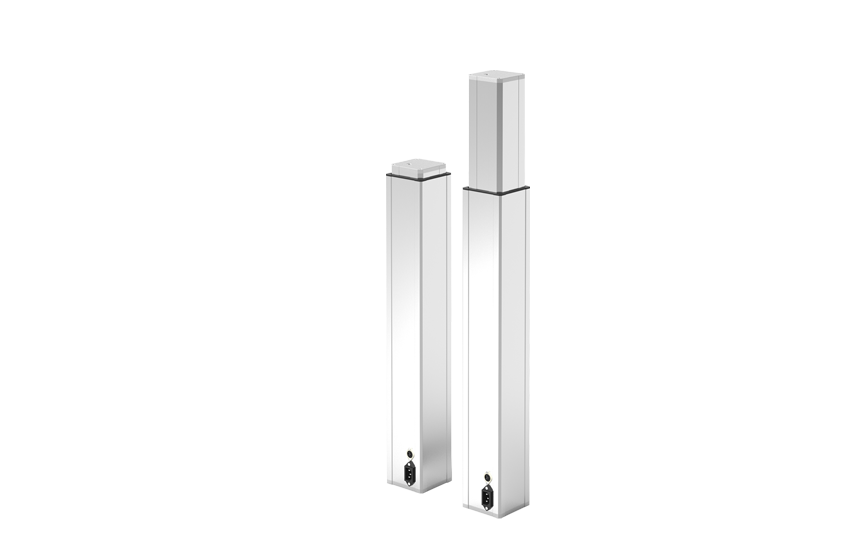

HT-X2 linear actuator column (GeMinG) one Column product development for medical and work environments, such as hospital beds, nursing home beds, treatmentunitsand height adjustable desk applications. The two outer tube HT-X2 formula canprovideastable operation of the lift, and can provide minimal dimensions and longstroke selection ... and so on...
Product Features
Motor type: permanent magnet DC motor
Voltage: 12V DC, 24V DC, 36V DC, 48V DC
Maximum self-locking force: 3,000N/Limited to thrust
Maximum load: 1,500N/Limited to thrust
Maximum tension: 500N/Maximum tension
The fastest speed at full load: 9.5 mm / s (load 500N)
The slowest speed at full load: 4.8 mm / s (load 2,000N)
Stroke: 100~600mm
Minimum size: stroke + 180 mm (limited to 300 mm stroke or less)
Minimum size: stroke + 200 mm (over 300 mm stroke or more)
Maximum outer tube size: two sections, 100*100mm, square
Color: silver gray or customized
IP rating: IP54
Operating temperature range: -45°C~+75°C
Full performance operating temperature range: +5°C~+45°C
Higher duty cycle (25%)
Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
High-strength metal zinc alloy housing protects motors and gears
Limit switch (built-in: not adjustable)

Model Selection


HTX2 Series Load±10%(N) Speed±2(mm/S)



Load

2,000

1,000

500







Speed

5 8

12







HTX2 Series Stroke ±2(mm) Mounting dimensions±2(mm)


Stroke

50

100

150

200

250

300

350

400

450

Size

200

250

300

350

400

450

500

580

630

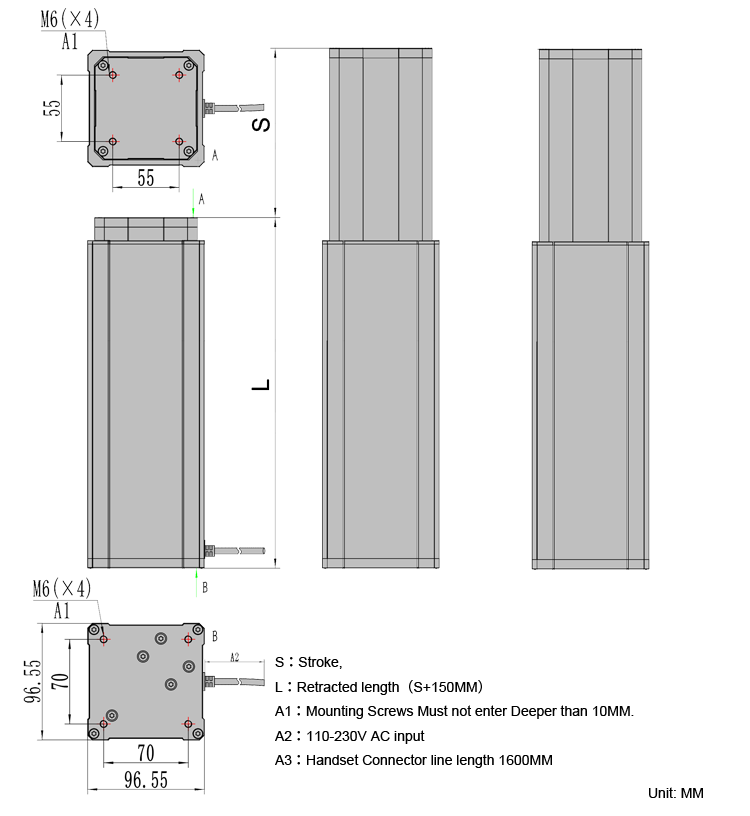

Drawing



                    Standard Dimension (mm)
