HTK75

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

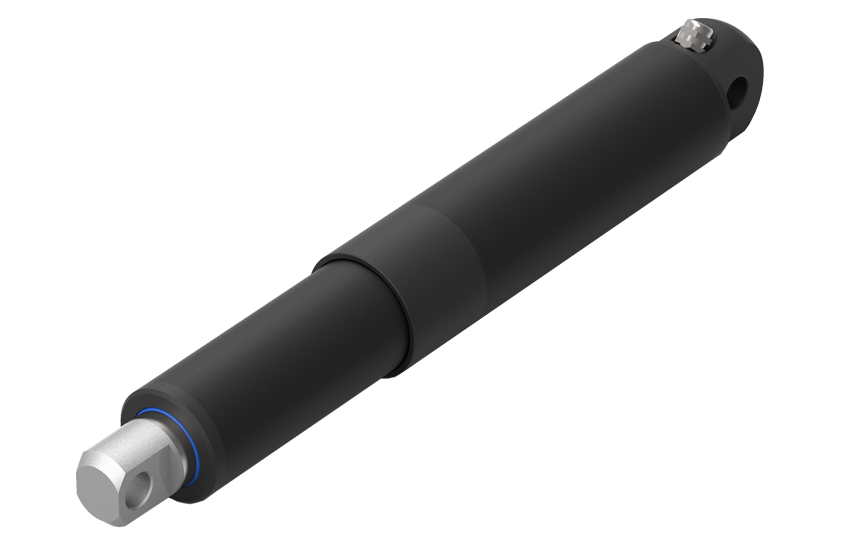

Harsh applications require equally demanding actuator solutions. GeMinG's HT-KC75 series linear actuators are specially developed for solar photovoltaic tracking system applications. Solar applications require actuators to have greater lifting and retention capabilities. Realizing these requirements will not at the same time reduce the well-known GeMinG quality. So we can also guarantee GeMinG's HT-KC75 series linear actuators have the least number of maintenance and service life up to 20 years, which is why we can promise a 5-year warranty*...



General Features


  •  Voltage of motor: 24V DC
  • Maximum load: 15,000N in push
  • Maximum speed at full load: 50mm/s ( load 1000N)
  • The slowest speed at full load: 2mm / s (Load 15,000N)
  • Stroke: 50~1800mm
  • Minimum dimensions: Stroke + 500 mm(S<500 mm)
  •                                 Stroke + 550 mm (S>500 mm)
  • Color: black
  • IP rating: IP66
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (10%)
  • Other options: Hall sensor(Dimensions=Minimum dimension+20 mm)
  • High-strength metal 406 carbon steel housing protects motors and gears
  • Stainless steel inner tube
  • Built-in limit switches (not adjustable)



Model Selection

HTK75 Series Load±10%(N) Speed±20%(mm/S)















Load



15,000

10,000

6,000

5,500

3,500

3,000

1,000

500

Speed



3

5

10

14

26

19

53

100







HTK75 Series Stroke ±2(mm) Mounting dimensions±2(mm)














Stroke

50

100

150

200

250

300

350

...

1200

...

Size

550

600

650

700

750

800

870


1750
























Drawing

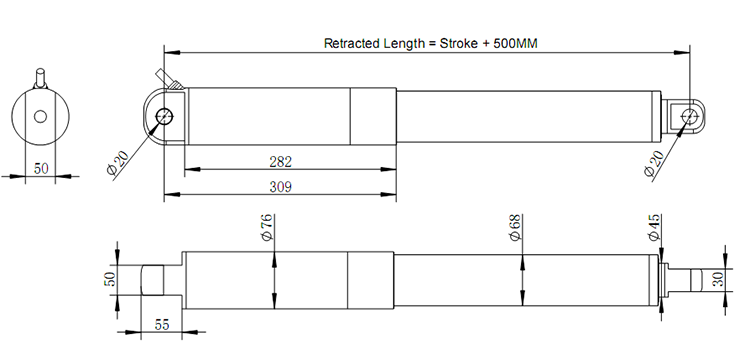

Standard Dimension (mm)
