HTW78CAN bus linear actuator |Linear-Actuators-Agricultural Plant Protection Agricultural Machinery Electric Cylinder_Electric Actuator

Industrial applications
Agricultural machinery

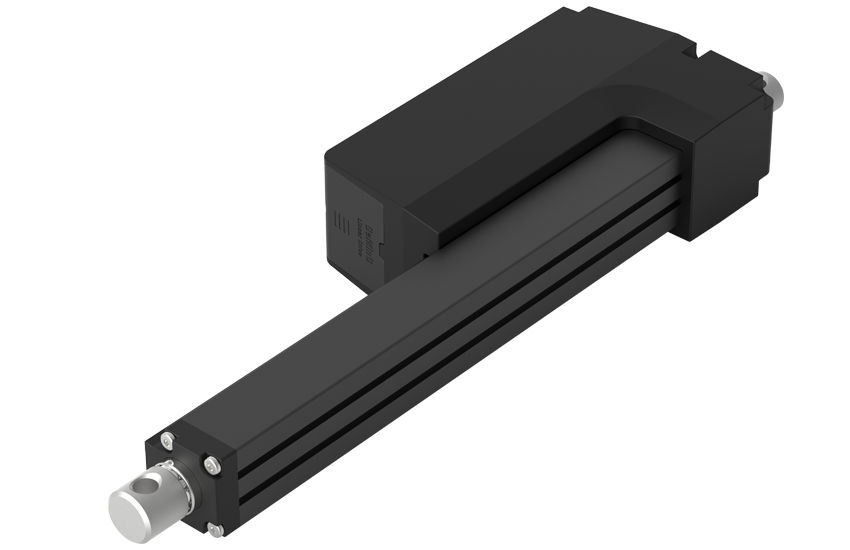

HTW78 industrial linear actuator is a very powerful actuator designed for various app such as agricultural machinery, construction machinery, and industrial machinery. Difficult applications Require equally demanding actuator actuators. GeMinG's HTW78 series linear actuators are designed for heavy-duty applications developed in harsh environments where there is a need for high lifting capacity and retention. GeMinG assures you of long-life maintenance-free products...

Product Features

Voltage: 24V, 48V DC
Motor options: Drushless DC motor
Maximum thrust (pull force):16,000N / 18,000N
Slowest speed under load: 7.0mm/s (load 16,000N)
Maximum speed under load: 200 mm/s (load 800N)
Minimum installation size:Stroke + 250mm
Dynamic lateral moment:1,000Nm
Static lateral moment:800Nm
Adaptable temperature range:-45°C ~ +75°C
Protection level:IP67
Control options:Synchronous control, independent control, integrated control, CAN bus control,

_________________________________

Dimensional Drawing	Specifications Standard size (mm)

					S: Stroke
					L: Initial installation dimensions
					L=Stroke +250MM
Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator

Model code option rules:	HTW76 - Voltage - Speed - Stroke - Minimum retracted length - Load - Other options

Product data sheet

Performance/Model Code	W78-*-A	W78-*-B	W78-*-C	W78-*-D	W78-*-E	W78-*-F	W78-*-G	W78-*-H	W78-*-I	W78-*-J
Input voltage VDC	12V DC 24V DC 36V DC 48V DC	12V DC 24V DC 36V DC 48V DC	12V DC 24V DC 36V DC 48V DC	12V DC 24V DC 36V DC 48V DC	12V DC 24V DC 36V DC 48V DC	12V DC 24V DC 36V DC 48V DC	12V DC 24V DC 36V DC 48V DC	12V DC 24V DC 36V DC 48V DC	12V DC 24V DC 36V DC 48V DC	12V DC 24V DC 36V DC 48V DC
Stroke range MM	50-600	50-600	50-700	50-800	50-800	50-800	50-900	50-1200	50-1500	50-1500
Dynamic load N	16,000	13,000	10,000	7,500	5,500	3,500	3,000	2,300	1,200	800
Static load N	20,000	15,000	10,000	10,000	7,500	6,500	5,000	3,000	2,000	1,000
No-load speed MM/S	7.0	10	15	17	22	33	50	67	133	200
Full load speed MM/S	6.0	8.0	13	15	20	30	45	60	125	180
No load/load current A	1.6/12.5	1.6/12.5	1.6/12.5	1.6/12.5	1.6/12.5	1.6/12.5	1.6/12.5	1.6/12.5	1.6/12.5	1.6/12.5
Screw type Ball / trapezoid	Trapezoidal/Ball Screw	Trapezoidal/Ball Screw	Trapezoidal/Ball Screw	Trapezoidal/Ball Screw	Trapezoidal/Ball Screw	Trapezoidal/Ball Screw	Trapezoidal/Ball Screw	Trapezoidal/Ball Screw	Trapezoidal/Ball Screw	Trapezoidal/Ball Screw
Operating temperature ℃	-40 +70	-40 +71	-40 +72	-40 +73	-40 +74	-40 +75	-40 +76	-40 +77	-40 +78	-40 +78
Protection level static / dynamic	IP65/IP67	IP65/IP67	IP65/IP67	IP65/IP67	IP65/IP67	IP65/IP67	IP65/IP667	IP65/IP67	IP65/IP67	IP65/IP67
Actuator weight KG@Stroke	7.5@100MM 100+0.8KG	7.5@100MM 100+0.8KG	7.5@100MM 100+0.8KG	7.5@100MM 100+0.8KG	7.5@100MM 100+0.8KG	7.5@100MM 100+0.8KG	7.5@100MM 100+0.8KG	7.5@100MM 100+0.8KG	7.5@100MM 100+0.8KG	7.5@100MM 100+0.8KG


W76 Stroke installation size reference			Stroke ±2（mm)		Retraction length ±2（mm）


Standard stroke(MM)	50	100	150	200	250	300	350	400	500	600	700
Retraction length(MM)	300	350	400	450	500	550	600	650	750	900	1000
