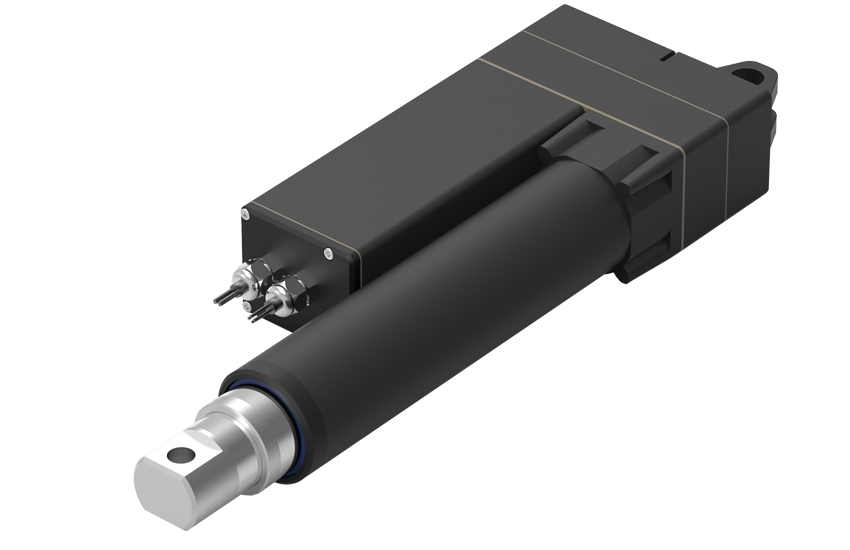

HTL3 electric linear actuator. It is powerful enough to completely replace hydraulic systems, while the technology is smarter, smaller and more efficient. This model represents a new level of load handling capability with loads up to 9,000 N. With a duty cycle of up to 95%, a stroke of up to 1500 mm, and a speed of up to 120 mm/s, HTL3 will revolutionize your next design project. It has strong impact resistance and can be used in harsh environments such as bumps and shocks.

Product Features

Maximum dynamic/maximum static load: 9,000/9,000N
Maximum speed at full load: 100.0mm/s (load 900N)
Slowest speed at full load: 3.7 mm/s (load 9,000N)
Stroke range: 50~1500MM
Minimum size: stroke /2 + 250MM
IP protection level: IP69
Operating temperature range: -45°C~+75°C
Other options: synchronous control, integrated control, Hall signal, CAN bus
Manual operation during power outage
Built-in holding brake

Product data sheet

Performance /Model Code	TL3-*-A	TL3-*-B	TL3-*-C	TL3-*-D	TL3-*-E	TL3-*-F	TL3-*-G	TL3-*-H	TL3-*-I	TL3-*-J
Input voltage VDC	12V DC 24V DC 36V DC 48V DC 220V AC	12V DC 24V DC 36V DC 48V DC 220V AC	12V DC 24V DC 36V DC 48V DC 220V AC	12V DC 24V DC 36V DC 48V DC 220V AC	12V DC 24V DC 36V DC 48V DC 220V AC	12V DC 24V DC 36V DC 48V DC 220V AC	12V DC 24V DC 36V DC 48V DC 220V AC	12V DC 24V DC 36V DC 48V DC 220V AC	12V DC 24V DC 36V DC 48V DC 220V AC	12V DC 24V DC 36V DC 48V DC 220V AC
Stroke range MM	100-800	100-800	100-800	100-800	100-800	100-800	200-3000	200-3000	200-3000	200-3000
Dynamic load N	9,000	6,000	5,500	4,000	3,300	2,200	1,800	1,100	900	500
Static load N	15,000	15,000	12,000	9,000	4,000	3,000	3,000	3,000	2,000	1,000
No-load speed MM/S	7	11	8	9	10	14	18	28	63	125
Full load speed MM/S	5	9	6	7	8	12	14	22	50	100
No load/load current A	2.6/17.5	2.6/17.5	2.6/17.5	2.6/17.5	2.6/17.5	2.6/17.5	2.6/17.5	2.6/17.5	2.6/17.5	2.6/17.5
Screw type Ball / trapezoid	Ball screw rod	Ball screw rod	Ball screw rod	Ball screw rod	Ball screw rod	Ball screw rod	Ball screw rod	Ball screw rod	Ball screw rod	Ball screw rod
Operating temperature ℃	-40 +71	-40 +71	-40 +72	-40 +73	-40 +74	-40 +75	-40 +76	-40 +77	-40 +78	-40 +79
Protection level static / dynamic	IP66/IP65	IP66/IP65	IP66/IP65	IP66/IP65	IP66/IP65	IP66/IP65	IP66/IP65	IP66/IP65	IP66/IP65	IP66/IP65
Actuator weight KG@Stroke	10.5@100MM 100+0.8KG	10.5@100MM 100+0.8KG	10.5@100MM 100+0.8KG	10.5@100MM 100+0.8KG	10.5@100MM 100+0.8KG	10.5@100MM 100+0.8KG	10.5@100MM 100+0.8KG	10.5@100MM 100+0.8KG	10.5@100MM 100+0.8KG	10.5@100MM 100+0.8KG

HTL3 Series		Stroke ±2（mm)		Retraction length ±2（mm）

Standard stroke(MM)	300	400	500	600	700	800	900	1000	1100
Retraction length(MM)	400	450	500	550	600	650	700	750	800

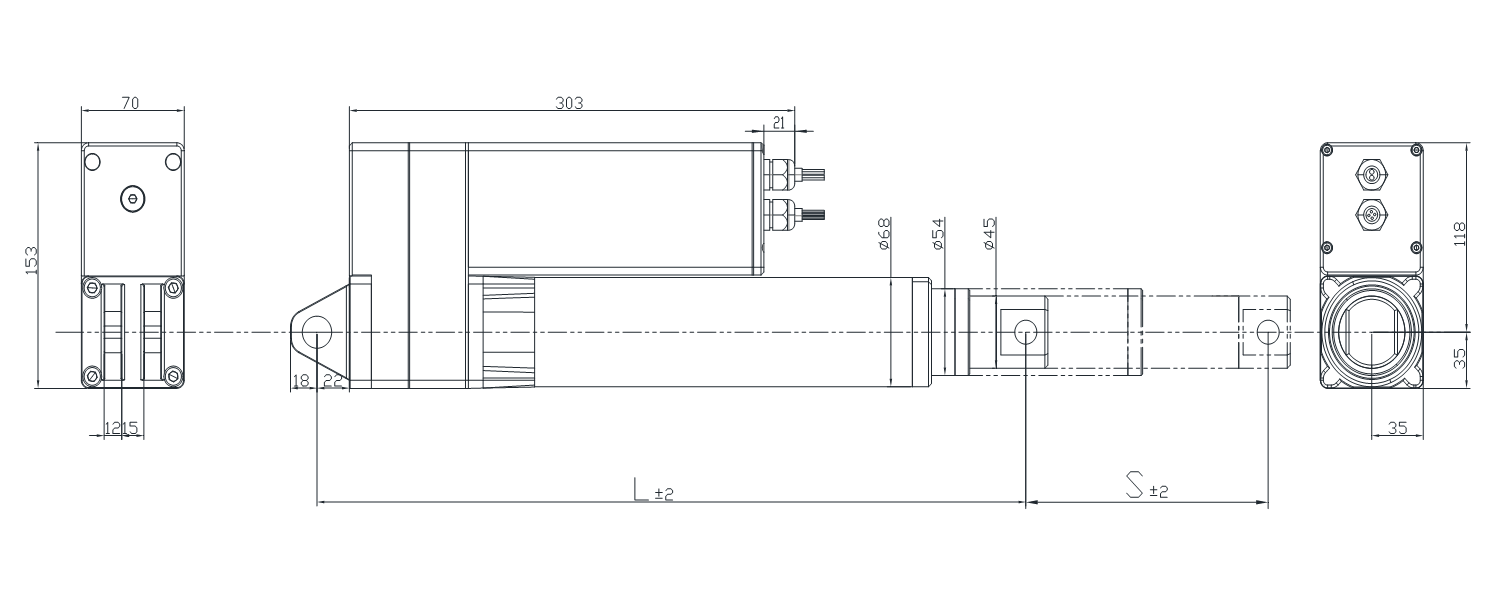

Drawings		Specifications standard size (mm)


						S: Stroke L: Retraction length L=Stroke /2+250MM
Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator

Model code option rules:		HTL3 - Voltage - Speed - Stroke - Minimum retracted length / Maximum extended length - Load - Installation method
