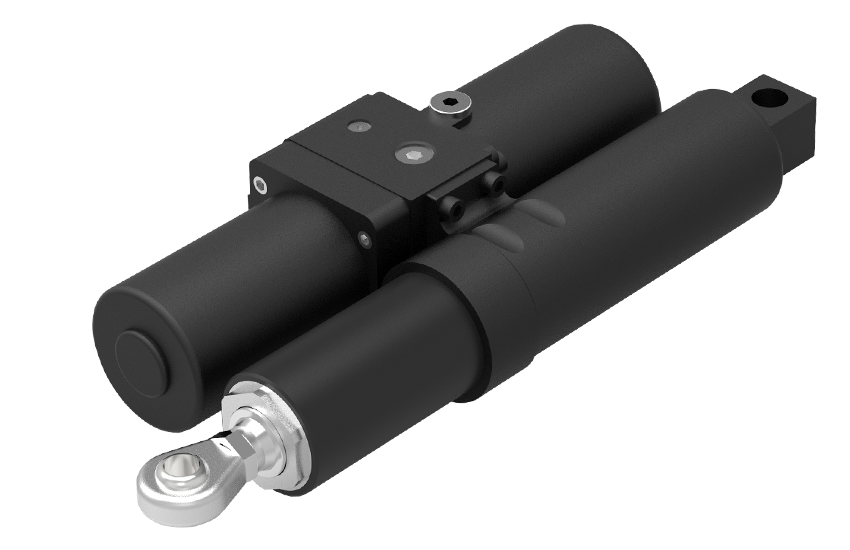

HTQ45 miniature electro-hydraulic system electric push rod, strong impact resistance, harsh environment, use in some large bumps and impact environments, fully enclosed hydraulic system, protection level set to IP68, its advantages are stable quality and long service life It is widely used in all kinds of industrial automation equipment, engineering vehicles, environmental protection, agricultural machinery and other occasions that require drive support.
Product Features
Motor type: permanent magnet DC motor
Motor voltage: 12V DC, 24V DC, 36V DC, 48V DC, 110V AC, 220V AC
Maximum load: 1,500N pull/push
Maximum speed at full load: 8.0mm/s (load 1,500N)
The slowest speed at full load: 14 mm / s (load 3,000N)
Stroke: 50~350mm
Minimum size: Stroke + 150 mm
Color: silver gray or black
IP rating: IP66
Operating temperature range: -45°C~+75°C
Full performance operating temperature range: +5°C~+45°C
Higher duty cycle (25%)
Other options: NO
High-strength metal zinc alloy housing protects motors and gears
Built-in limit switch (not adjustable)
|
產品數據表
|
|
|
|
|
|
|
|
|
|
|
|
|
HTQ45 Series
|
负载 ±10％（N）
|
速度 ±2（mm/S）
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
最大负载(N)
|
15,000
|
10,000
|
8,000
|
6,000
|
5,000
|
3,000
|
|
|
|
|
空载速度(MM/S)
|
15.0
|
15.0
|
15.0
|
15
|
15
|
15
|
|
|
|
|
负载速度(MM/S)
|
8.0
|
10
|
12
|
13
|
14
|
15
|
|
|
|
|
|
|
|
|
|
|
|
HTQ45 Series
|
行程 ±2（mm)
|
缩回长度 ±2（mm）
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
标准行程(MM)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
|
缩回长度(MM)
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
产品重量(KG)
|
3.6
|
3.9
|
4.2
|
4.5
|
4.8
|
5.1
|
5.5
|
5.9
|
6.5
|
|
|
|
|
|
|
|
|
|
|
|
|
工程圖
|
规格標準尺寸 (mm)
|
|
|
|
|
|
S: 行程
L: 縮加安裝尺寸
L=行程 +150MM
|
|
Linear actuator
|
Linear actuator
|
Linear actuator
|
Linear actuator
|
Linear actuator
|
Linear actuator
|
Linear actuator
|
Linear actuator
|
Linear actuator
|
Linear actuator
|
|
|
|
型號代碼選項規律：
|
HTQ45- 电压- 速度 - 行程 - 缩回最小长度 / 伸出最大长度 - 负载 - 安装方式
|
