HTA20

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

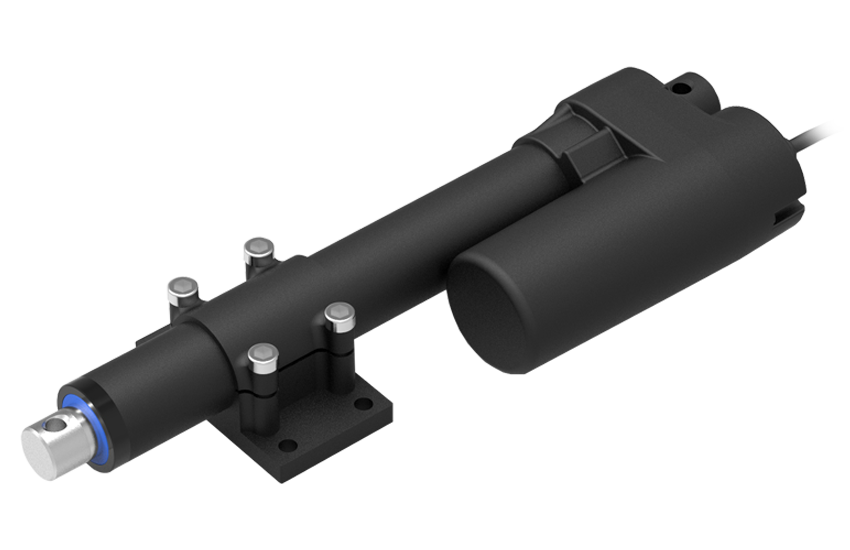

HTA20 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP69K Alternatively, TA Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..

Notice: HTA16 will be ready for sale in May, 2020.


General Features


  • Voltage of motor: 12V DC, 24V DC 36V DC,
  • Maximum load: 4,500N in pull/push
  • Maximum speed at full load: 90mm/s ( load 500N)
  • The slowest speed at full load: 5mm / s (Load 4,500N)
  • Stroke: 50~600mm
  • Minimum dimensions: Stroke + 140 mm (S<300mm)
  •                                           Stroke + 150 mm (S>300mm)
  • Color: Silver gray or black
  • IP rating: IP69K
  • Operational temperature range: -40°C~+55°C
  • Operational temperature range at full performance: -40°C~+55°C
  • Higher duty cycle (25%),
  • Other options: Hall sensor
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)

Model Selection










HTA20 Series Load±10%(N) Speed±2(mm/S)













Load 4,500 3,000 1,500 800 500 000


Speed 7.5 15 30 60 90 000








HTA20 Series Stroke ±2(mm) Mounting dimensions±2(mm)












Stroke 50 100 150 200 250 300 350 400 450
Size 190 240 290 340 390 450 500 550 600




















Drawing Standard Dimension (mm)



Code selection:  HTA20 - voltage - speed - stroke - minimum installation size / maximum installation size - load
