Position: GeMinG > Linear Actuator > HTW10B Linear Actuators

HTW10B

Series

Linear Actuator

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

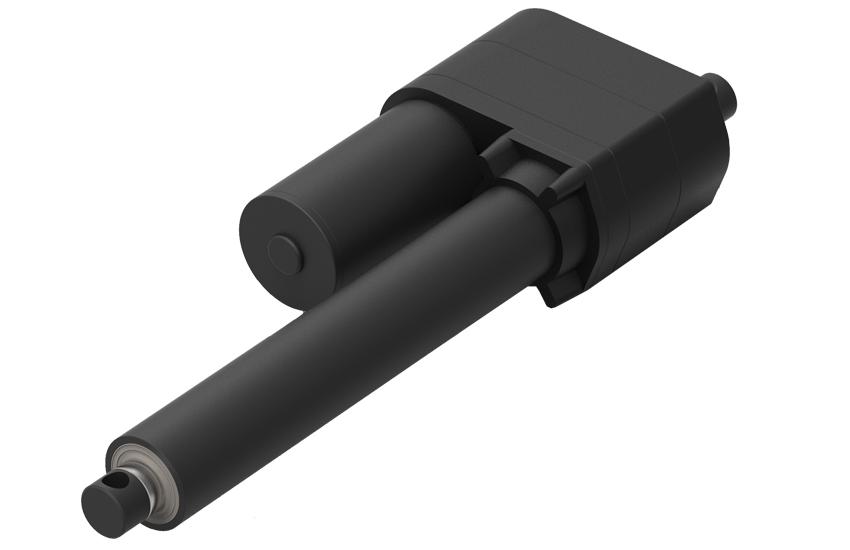

HTW10B industrial linear actuator is a very powerful actuator designed for various applications such as agricultural machinery, construction machinery, and industrial machinery. Configure the standard HTW10B linear actuator. Due to its large capacity, well-designed, and IP65-rated protection, GeMinG actuators are ideal for agricultural, construction, and industrial machinery plants. The biggest advantage; can adjust the stroke, installation length and product durability. All-product all-metal materials do not contain any plastic parts...


General Features


  • Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
  • Maximum load: 7,000N
  • Maximum speed at full load: 23mm/s ( load 2,000N)
  • The slowest speed at full load: 5.5mm / s (Load 7,500N)
  • Stroke: 50~800mm
  • Minimum dimensions: Stroke + 250 mm(S<400mm)
  •                                   : Stroke + 300 mm(S>400mm)
  • Color: black
  • IP rating: IP65
  • Operational temperature range: -20°C~+45°C
  • Higher duty cycle (25%)
  • Other options: Potentiometer
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switch, (not adjustable)



Model Selection


HTW10B Series Load±10%(N) Speed±2(mm/S)
Load 7,000 7,000 5,000 4,000 3,000 2000
Speed 5.0 8.0 11 17 22 35
HTW10B Series Stroke ±2(mm) Mounting dimensions±2(mm)
Stroke 50 100 150 200 250 300 350 400 450
Size 300 350 400 450 500 550 600 650 750

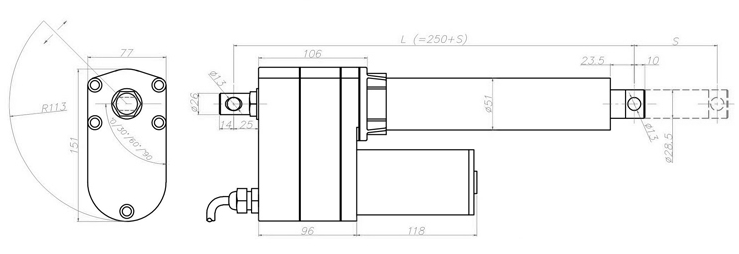

Drawing Standard Dimension (mm)
