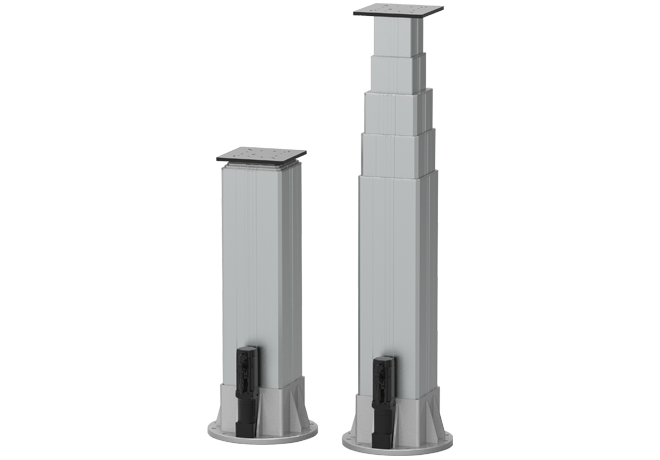

| HTD5 series electric lifting pole is a new type of light-load electric lifting column developed by GeMinG. The electric lifting mode abandons the ordinary pneumatic lifting mode. This electric lifting column is not affected by the environment, resources and temperature. It works in all-weather and all-weather conditions. It can also be manually operated when there is no electricity. . Its characteristics include larger pipe diameter matching, stronger wind resistance and stability. Non-rotatable, better guarantee the orientation of the equipment, self-locking at any height. It can be controlled by PC or by remote control. | ||||||||
| Product Features | ||||||||
|
Motor options: AC motor, stepper motor, servo motor
Voltage: 24~48V DC or 220V, 380V AC Maximum self-locking force: 1,000N/Limited to thrust Maximum load: 800N/Limited to thrust Maximum tension: 500N/Maximum tension The fastest speed at full load: 2.5 M / min (load 500N) The slowest speed at full load: 1.5 M/min (load 800N) Minimum retracted height: There are three types: Minimum retracted height: 1.52M, 1.77M, 2.25M Expanded maximum height: 5.0M, 6.0M, 8.0M Dynamic lateral torque: 150Nm Static lateral moment: 250Nm Color: customized Safety certification: comply with ISO9001-2008, working temperature range: Operating temperature range: +5 ° C ~ + 45 ° C Storage temperature range: -35 ° C ~ + 85 ° C Protection level: IP65 Tube material: 6063 aluminum, Pipe size: maximum pipe 147*147/minimum pipe 64*64 Work control options: electric control, manual control, synchronous control, independent control |
||||||||
