HTA20

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

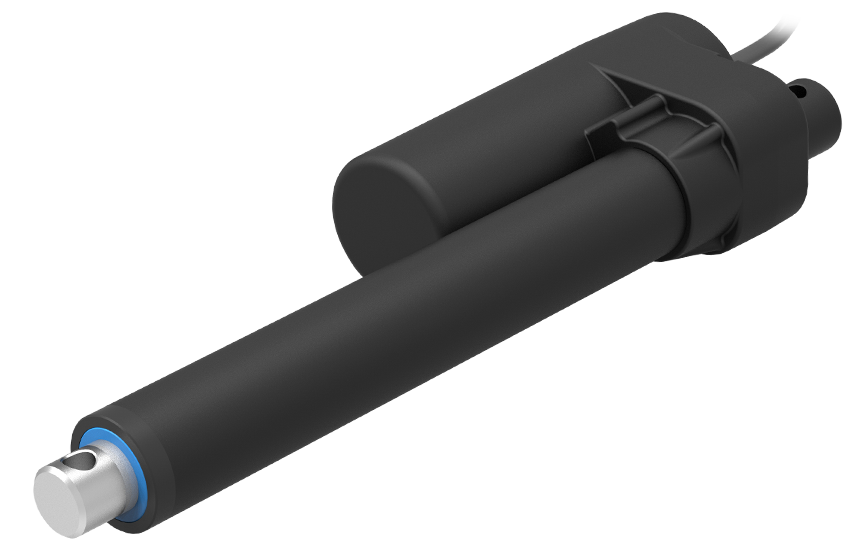

HTA20 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP69K Alternatively, TA Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..



General Features


  • Voltage of motor: 12V DC, 24V DC 36V DC,
  • Maximum load: 4,000N in pull/push
  • Stroke: 50~600mm
  • Minimum dimensions: Stroke + 140 mm (S<300mm)
  •                                           Stroke + 150 mm (S>300mm)
  • Color: Silver gray or black
  • IP rating: IP69K
  • Operational temperature range: -40°C~+55°C
  • Operational temperature range at full performance: -40°C~+55°C
  • Higher duty cycle (25%),
  • Other options: Hall sensor
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)

Model Selection










HTA20 Series Load±10%(N) Speed±2(mm/S)













Load 4,000 2,000 1,200 900 700 600 300 200
Speed 7 15 20 28 40 40 75 110






HTA20 Series Stroke ±2(mm) Mounting dimensions±2(mm)












Stroke 50 100 150 200 250 300 350 400 450
Size 190 240 290 340 390 450 500 550 600




















Drawing Standard Dimension (mm)



Code selection:  HTA20 - voltage - speed - stroke - minimum installation size / maximum installation size - load
