HTA21

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

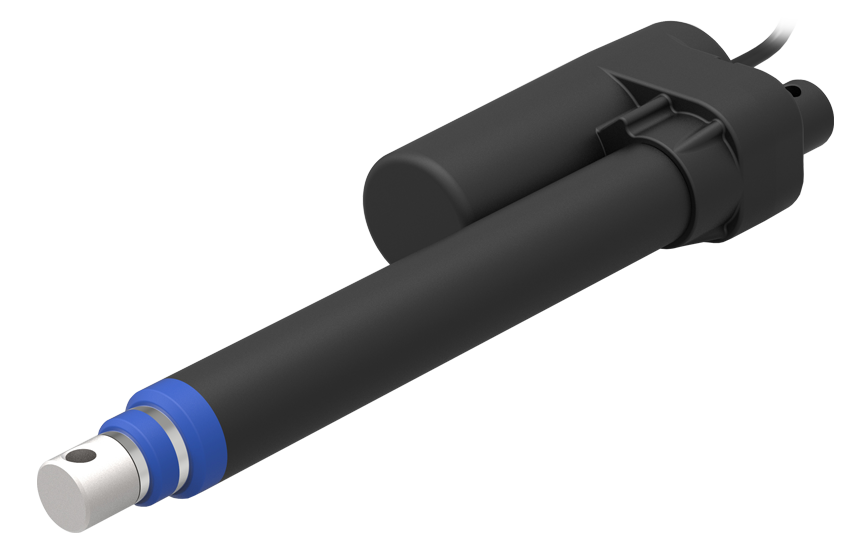

HTA21 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP69K Alternatively, TA Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..



General Features


  • Voltage of motor: 12V DC, 24V DC 36V DC,
  • Maximum load: 1,500N in pull/push
  • Maximum speed at full load: 75mm/s ( load 200N)
  • The slowest speed at full load: 18mm / s (Load 1,500N)
  • Stroke: 50~600mm
  • Minimum dimensions: Stroke / 2 + 160 mm (S<700mm)
  •                                           Stroke / 2 + 180 mm (S>800mm)
  • Color: Silver gray or black
  • IP rating: IP66
  • Operational temperature range: -40°C~+55°C
  • Operational temperature range at full performance: -40°C~+55°C
  • Higher duty cycle (25%),
  • Other options: Hall sensor
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)

Model Selection










HTA21 Series Load±10%(N) Speed±2(mm/S)













Load
1,500 700 200 000 000


Speed
18 35 95 00 000








HTA21 Series Stroke ±2(mm) Mounting dimensions±2(mm)












Stroke 200 300 400 500 600 700 800 900 1000
Size 260 310 360 410 460 510 580 630 680

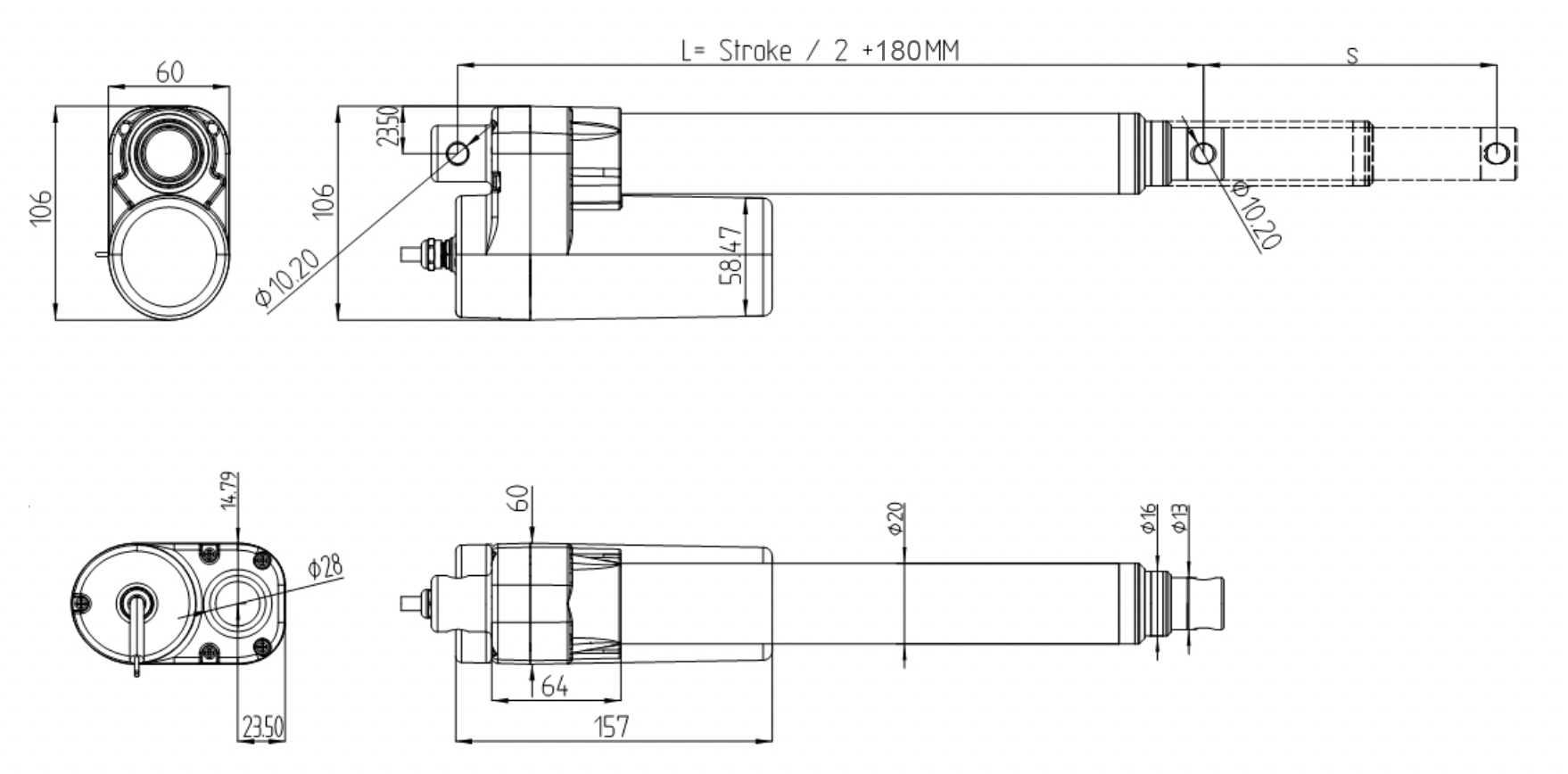

Drawing Standard Dimension (mm)



Code selection:  HTA20 - voltage - speed - stroke - minimum installation size / maximum installation size - load
