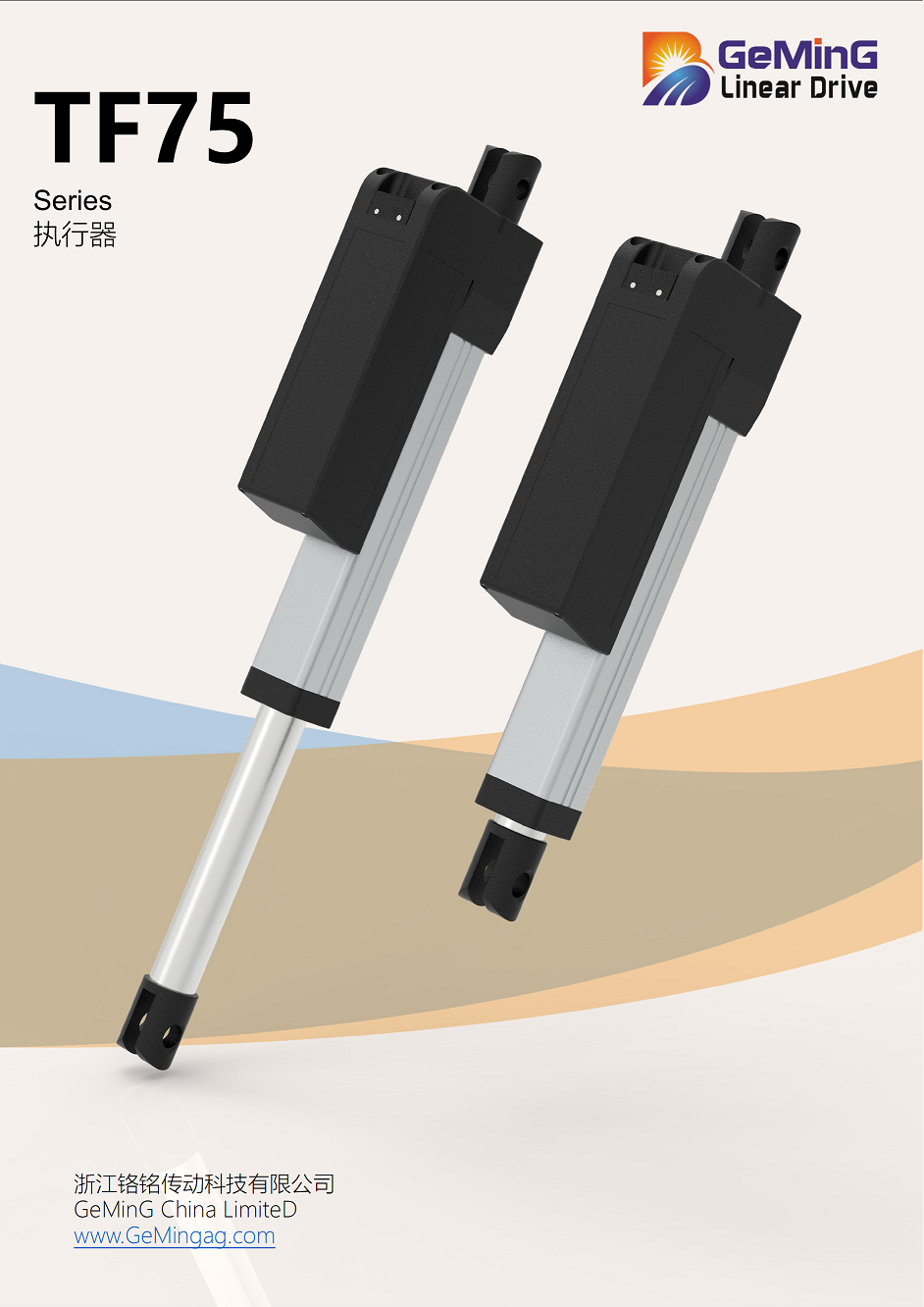

| The TF75 series, GeMinG's new linear actuator, is designed for heavy-duty applications requiring high lift capacity and thrust up to 30 kN. The TF75 offers GeMinG's renowned quality, ensuring a long, maintenance-free product life. Complex applications require equally demanding actuators. This exceptionally robust actuator is designed for a wide range of applications, including agricultural, construction, and industrial machinery. Its large capacity, sophisticated design, and IP66-rated protection make it ideal for agricultural, construction, and industrial machinery. Its key advantages include adjustable stroke, mounting length, and product durability. Made entirely of metal, it contains no plastic components... |
| Product Features |
|
Operating Voltage: 48V DC, 220V AC, 380V AC Motor Type: Brushless DC Motor, Brushless AC Motor Maximum Dynamic/Static Load: 30,000/50,000N Maximum Speed at Full Load: 250.0 mm/s (Load: 2,000N) Minimum Speed at Full Load: 8.0 mm/s (Load: 30,000N) Stroke Range: 100-2000mm Minimum Dimension: Stroke + 300mm IP Rating: IP68 Operating Temperature Range: -45°C to +75°C Other Options: Synchronous Control, Integrated Control, CAN Bus Power Failure Manual Operation Built-in Holding Brake |
