In modern industrial manufacturing and economic development, a large part has a certain relationship with the gear motor. In the geared motor, the application of the planetary reducer has an irreplaceable application. The chrome drive simply introduces the advantages of the planetary reducer. Uses; planetary reducer advantages: high precision, high rigidity, high load, rate, high speed ratio, high life, low inertia, low vibration, low noise, low temperature rise, beautiful appearance, light structure, easy installation, positioning, etc. Features, suitable for AC servo motor, DC servo motor, stepper motor, hydraulic motor speed increase and reduce drive. The transmission efficiency of planetary reducers is generally above 90%, and the application is very extensive...

The main purpose

Automatic doors and windows,
Automatic curtains,
ATM ATM at the bank
Medical equipment
Furniture and industry

Motor unit data sheet

motor model model	Rated voltage V DC	No-load speed R/MIN	No-load current MA	Rated speed R/MIN	Rated torque G.CN	Output Power W	Rated current A	Stalling torque G.CN	Stall current A

395-12K	12	3000	0.25	2500	400	10	1.6	2880	6.7
395-24K	24	3000	0.15	2500	400	10	0.9	2880	4.2

Planetary geared motor data sheet

Model	Reduction ratio		1：3.7	1：5.2	1：14	1：19	1：27	1：51	1：71	1：100	1：139	1：189	1：264	1：369	1：515	1：721
	No-load speed	Rpm	810	580	220	155	110	58	42	30	21	15	11	8	5.8	4.2
	Rated torque	Kg.cm	1.2	1.7	4.0	5.6	7.2	13	18	25	36	45	45	45	45	45
	Rated speed	Rpm	675	480	180	130	92	49	35	25	18	13	10.2	7.5	5.5	4.0
	Instant torque	Kg.cm	2.5	3.0	7.0	9.0	12	25	30	40	50	60	60	60	60	60
	No-load speed	Rpm	810	580	220	155	110	58	42	30	21	15	11	8	5.8	4.2
	Rated torque	Kg.cm	1.2	1.7	4.0	5.6	7.2	13	18	25	36	45	45	45	45	45
	Rated speed	Rpm	675	480	180	130	92	49	35	25	18	13	10.2	7.5	5.5	4.0
	Instant torque	Kg.cm	2.5	3.0	7.0	9.0	12	25	30	40	50	60	60	60	60	60
L(MM)			26		34			42				50
Swing gap		o	0.7		0.8			1.0				1.5

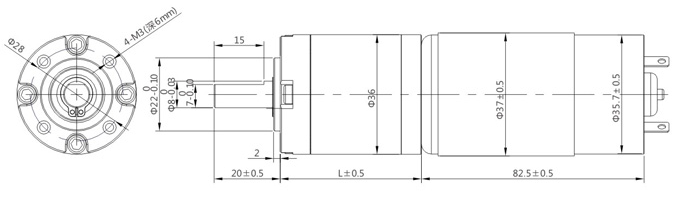

Drawings

HTX36

Series
