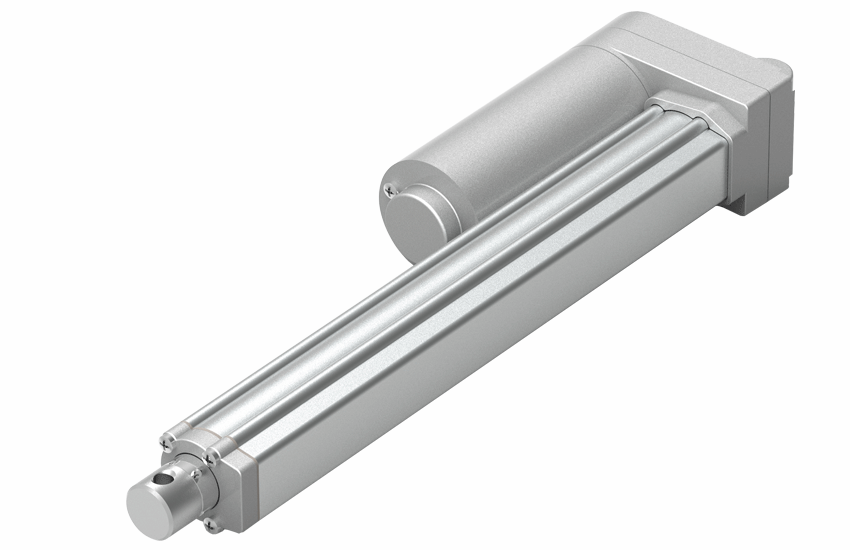

GeMinG HTA18 series linear actuator is designed for light industry, because of its compact size, metallic gear and proper capacity, HTA180 widely used for agricultural machinery, construction, clean sweeping vehicles, ships, automatic window control, assembly line and other applications.
General Features
| Model Selection | |||||||||
|
|
|
|
|
|
|
|
|
|
|
| HTA18 Series | Load±10％（N） | Speed±2（mm/S） |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
| Load | 4,500 | 2,500 | 1,500 | 1,000 | 500 | 300 |
|
|
|
| Speed | 5.0 | 10 | 15 | 22 | 44 | 66 |
|
|
|
|
|
|
|
|
|
|
||||
| HTA18 Series | Stroke ±2（mm) | Mounting dimensions±2（mm） |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 155 | 205 | 255 | 305 | 355 | 420 | 470 | 520 | 570 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

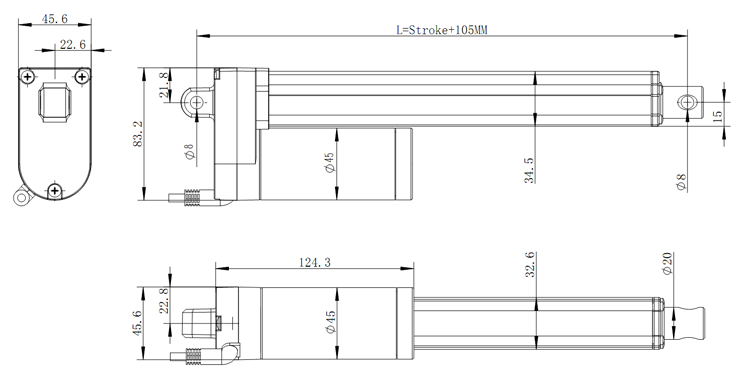

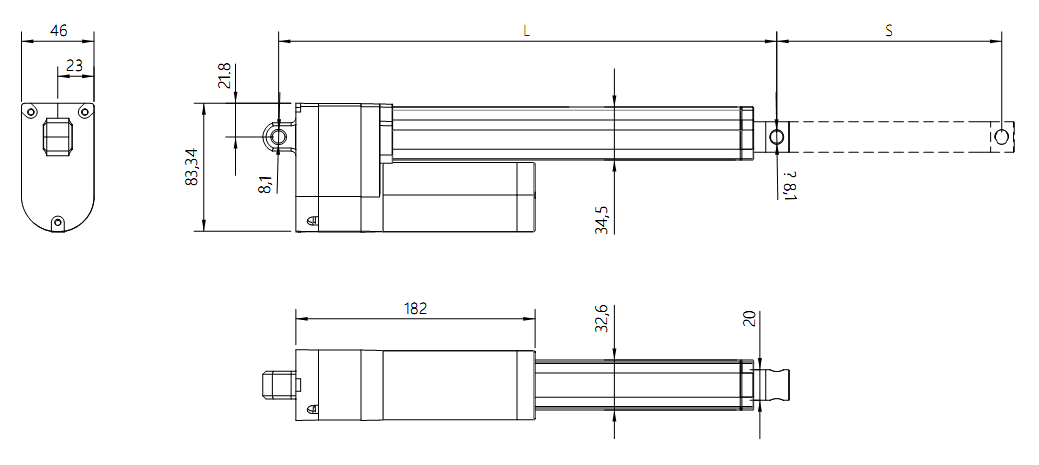

| Drawing | Standard Dimension (mm) | ||||||||
|
|
|||||||||
|
|
|||||||||
|
|||||||||
 |
|||||||||
|
|||||||||
| Code selection: | HTA180 - voltage - speed - stroke - minimum installation size / maximum installation size - load | ||||||||
