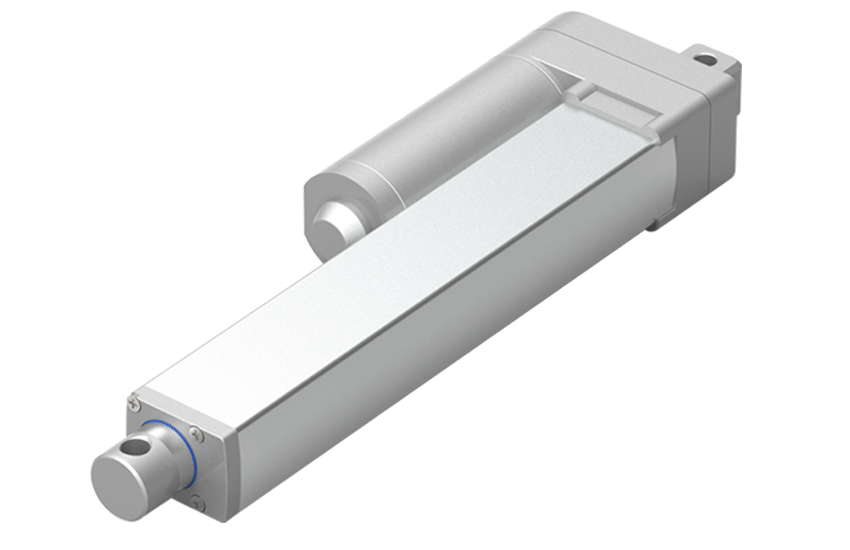

HTA21 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP66 Alternatively, HT Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..

General Features

Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC,
Maximum load: 4,500N in push
Stroke: 10~600mm
Minimum dimensions: Stroke + 125 mm
Color: Silver gray or black
IP rating: IP66
Operational temperature range: -45°C~+75°C
Operational temperature range at full performance: +5°C~+45°C
duty cycle: 2min on, 18min off
Other options: Hall sensor
High strength metallic zinc alloy housing protects motor and gear
Built-in limit switches (not adjustable)

Model Selection

HTA21 Series		Load±10％（N/lbs）		Speed±2（mm/S）

Max Dynamic Load：N(lbs)	4,500	2,200	1,600	1,000	800	00
Max Static Load：kN(lbs)	4,500	2,200	1,500	1,000	800	00
No-Load Speed: mm/s	7	14	9	12	16	00
Full-Load Speed: mm/s	3.5	4.8	7	9.5	14.3	00

HTA28H Series		Stroke ±2（mm)		Mounting dimensions±2（mm）

Stroke：mm	50	100	150	200	250	300	350	400	450
Minimum installation size:mm	175	225	275	325	375	440	490	540	590
Actuator Weight：kg	1.1	1.2	1.3	1.4	1.5	1.8	1.9	2.1	2.3

Drawing		Standard Dimension (mm)



Code selection:		HTA21 - voltage - speed - stroke - minimum installation size / maximum installation size - load

HTA21
