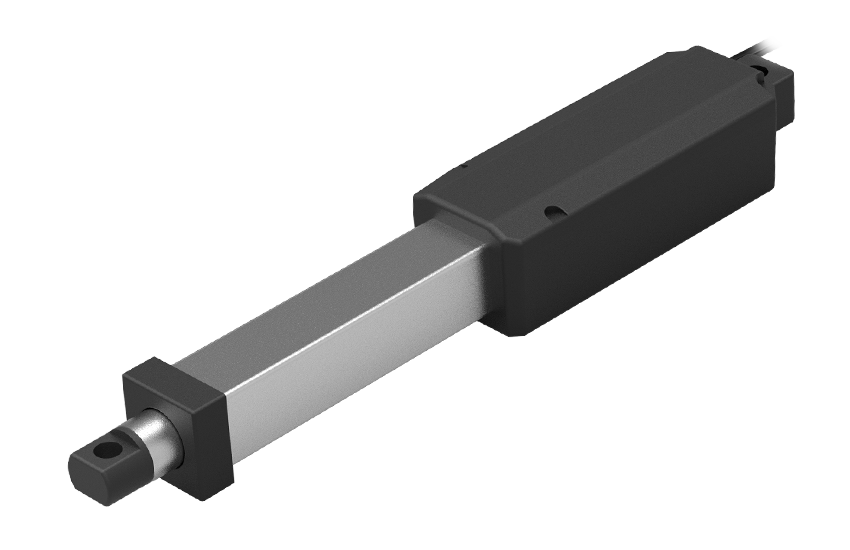

HTK15

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

GeMinG's HTK15 model is suitable for all applications of electric miniature linear actuators. The HTK15 miniature linear actuator is the difficulty and trouble for the product designer to save the large awkward motor, space, gear and rod linear worktable.

GeMinG offers the widest range of miniature actuators for any robot project.GeMinG AG has responded to the challenge of designing sports products and has continuously reduced its size and shape. Need a customized miniature linear actuator? We can help. Our team of engineers will work closely with your business to design a custom linear actuator that meets your requirements...


General Features

  • Voltage of motor: 6V DC, 12V DC
  • Maximum load: 188N in push
  • Speed range: 5-150mm/s
  • Stroke: 10, 17.5, 21, 25, 30, 50, 75, 100, 150mm(150mm is customized)
  • Minimum dimensions: Stroke + 54.5 mm;
  •                                Stroke+98mm(stroke>100mm)
  • Product weight: 35G
  • Color: Silver gray or black
  • IP rating: IP54(standard plastic shell), IP65(metal shell)
  • Operational temperature range: -10°C~+55°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Duty cycle (10%)
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)




Drawing

Standard Dimension (mm)
