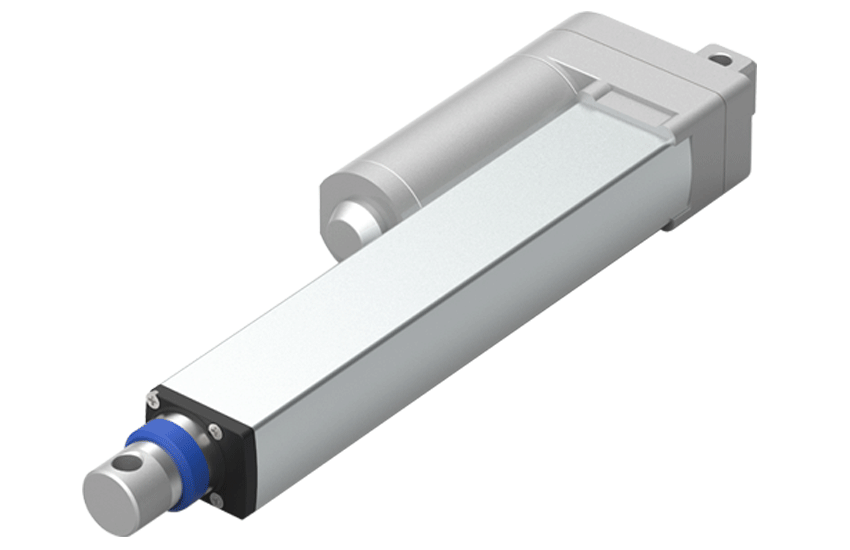

HTA23 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control, Application Design of actuators. The products are compact designs with a protection grade of IP68. the TA Series linear actuator is One kind of power-driven device, its installation is not the terrain, Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate.
General Features
| Model Selection | |||||||||
|
|
|
|
|
|
|
|
|
|
|
| HTA23 Series | Load±10％（N） | Speed±2（mm/S） |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
| Load | 1,500 | 1,000 | 800 | 500(no self-locking) | 400 | 200(no self-locking) |
|
|
|
| Speed | 10 | 20 | 22 | 40 | 30 | 80 |
|
|
|
|
|
|
|
|
|
|
||||
| HTA23 Series | Stroke ±2（mm) | Mounting dimensions±2（mm） |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
| Stroke | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Size | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| Note: stroke can be customized. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

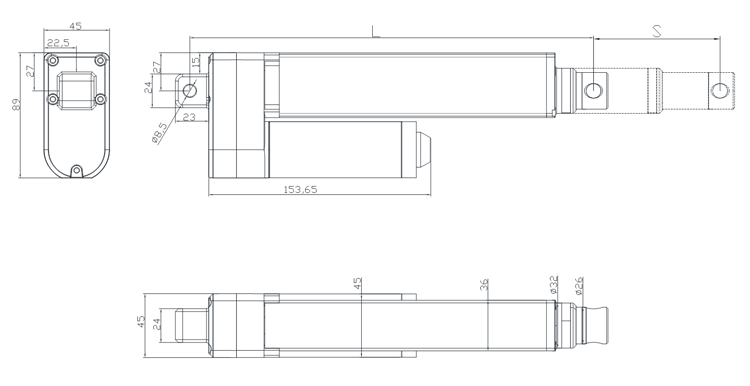

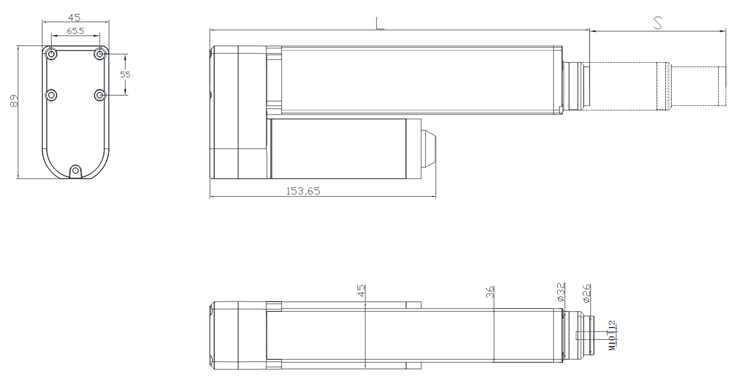

| Drawing | Standard Dimension (mm) | ||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
| Code selection: | HTA23 - voltage - speed - stroke - minimum installation size / maximum installation size - load | ||||||||
