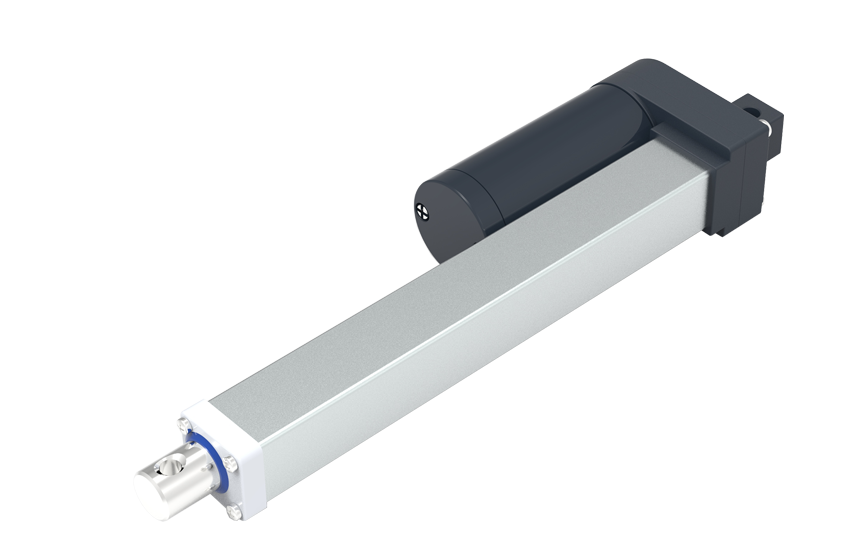

HTA25 linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP54 Alternatively, HT Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..

General Features

• Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
• Maximum load: 3,500N in push
• Maximum speed: 80mm/s ( load 150N)
• The slowest speed: 5mm / s (Load 3,500N)
• Stroke: 8~900mm

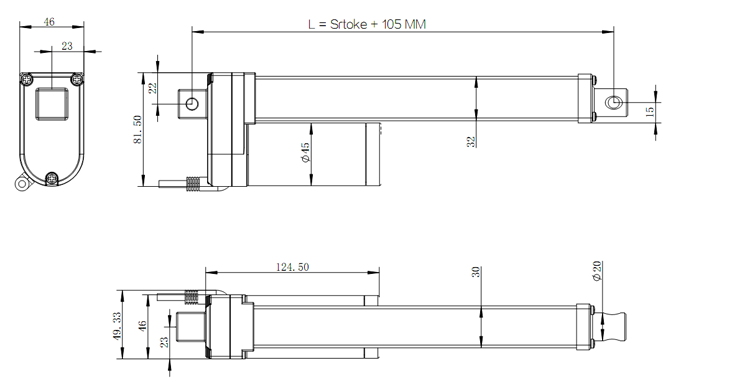

• Minimum dimensions: Stroke + 105 mm (S＜300mm)
•                                           Stroke + 120 mm (S＞300mm)
• Color: Silver gray or black
• IP rating: IP54
• Operational temperature range: +5°C~+45°C
• Higher duty cycle (25%)
• Other options: Hall sensor, control system
• High strength metallic zinc alloy housing protects motor and gear
• Built-in limit switches (not adjustable)
