HTA850 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles,

Industrial Motion

Document Downloads

PDF Data Sheet

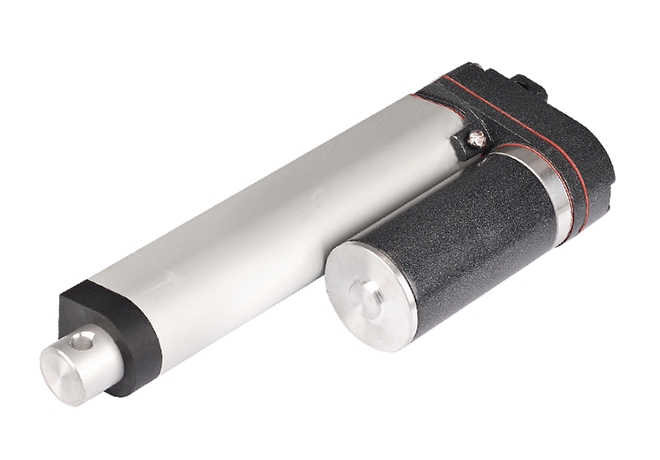

HTA850 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP54 Alternatively.

General Features

Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
Maximum load: 750N in push
Maximum speed at full load: 48mm/s (load 60N)
The slowest speed at full load: 5mm / s (Load 750N)
Stroke: 30~800mm
Minimum dimensions: Stroke + 100 mm
Color: Silver gray or black
IP rating: IP54D
Operational temperature range: -20°C~+45°C
Higher duty cycle (25%)
Other options: NO
Built-in limit switches (not adjustable)



HTA850 Series		load ±10％（N）		speed ±2（mm/S）

Max load(N)		750	500	400	250	200	130
no-load speed(MM/S)		7	10	14	20	30	42
Full-load speed(MM/S)		5.5	8.8	12.3	17.9	25	35.6

HTA850 Series		stroke ±2（mm)		closed length ±2（mm）

standard stroke(MM)	100	150	200	250	300	350	400	450	500
closed length(MM)	205	265	305	365	420	470	520	570	620
weight(KG)	0.8	0.9	1	1.1	1.2	1.3	1.5	1.6	2.2

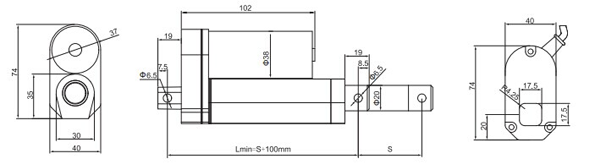

Drawing		dimensions (mm)


						S: stroke L: closed length L=stroke +100MM（S>300=S+120MM）

Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator
型號代碼選項規律：		HTA850 - 电压- 速度 - 行程 - 缩回最小长度 / 伸出最大长度 - 负载 - 安装方式

HTA85

Series
