Lifting column

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

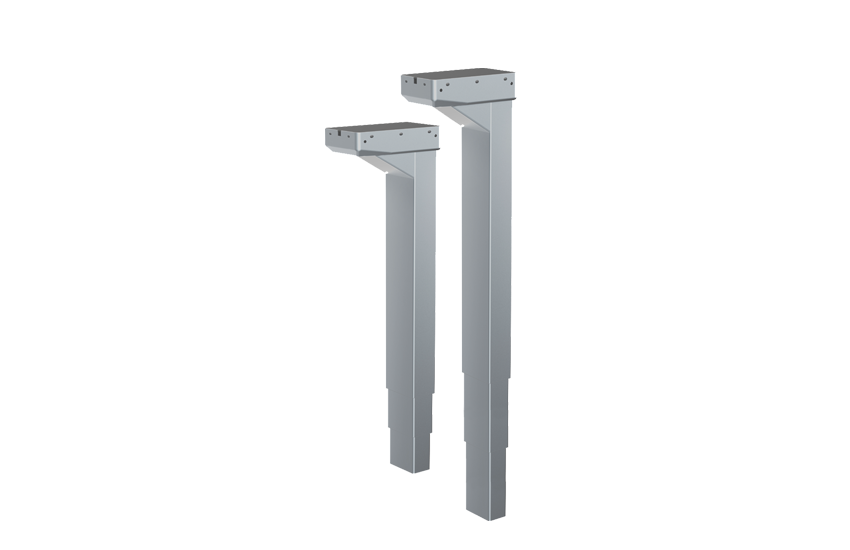

GeMinG's HTL series lifting columns are specifically designed for ergonomic desks and workstations. Using multiple HTL series lifting columns compatible with GeMinG control boxes and HTS series control handles, it is possible to synchronize movements and to smoothly and smoothly control the work surface. All HTK series control boxes have a backup battery option of less than 0.1W. Our extensive columns provide customers with the solutions they need to meet their work environment project requirements. HTL84 has a two-stage telescopic outer tube...

General Features

  • Maximum load: 800N in push
  • Maximum speed at full load: 38mm/s (with 800N in a push condition)
  • Minimum installation dimension: 560mm
  • Stroke: 650mm
  • Highest height: 1210mm
  • Dimension of outer tube (L*W): 80*50mm
  • Two stage outer tube with rectangular appearance
  • Color: Silver gray
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • With narrow top and wide bottom configuratio

Standard Technical Sheet

Model Load(N) Self-locking force (N)
Rated current (A)
Speed (mm/s)
Work system
Stroke (mm)
Mounting (mm)
HT-L84 800 1200 5 38 10% 650 560 1210

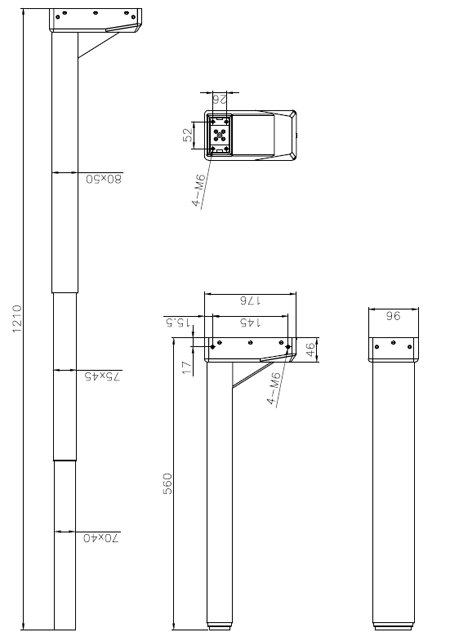

Standard Dimension (mm)
