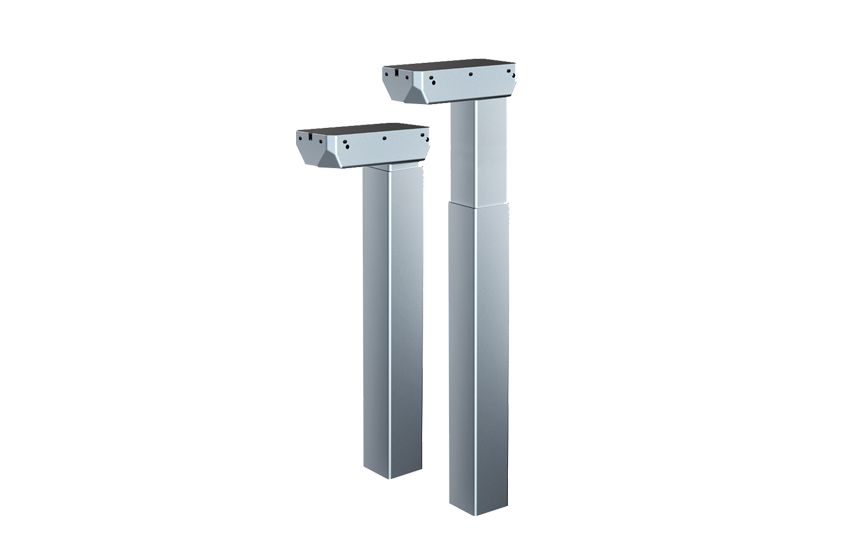

| GeMinG's HTL series lifting columns are specially designed for ergonomic desks and workstations. Using multiple HTL series lifting columns compatible with GeMinG control boxes and HTS series control handles can move synchronously and control the work surface smoothly and steadily. The backup battery options of all HTK series control boxes are less than 0.1W. We provide a wide range of solutions for our customers to meet the requirements of their work environment projects. | |||||||||
| Product Features | |||||||||
|
Motor type: permanent magnet DC motor
Maximum load: thrust 800N Maximum speed at full load: 38mm/s (800N in the push state) Minimum installation size: 650mm Stroke: 500mm Maximum height: 1150mm Outer tube size (length * width): 70 * 70mm Two-stage outer tube with rectangular shape Color: silver gray Operating temperature range: -45°C~+75°C Full performance operating temperature range: +5°C~+45°C Higher duty cycle (25%) Narrow top and wide bottom configuration |
|||||||||
| 產品數據表 | ||||||||
| 模型 | 負載(N) | 自鎖力 (N) | 額定電流(A) | 速度 (mm/s) | 工作頻率 | 行程 (mm) | 安裝 (mm) | 最高(mm) |
| HT-L85 | 800 | 1200 | 5 | 38 | 10% | 500 | 650 | 1150 |

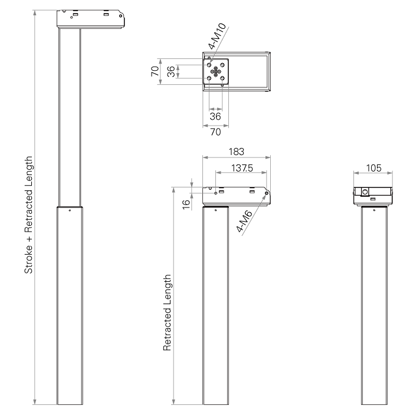

| 工程圖 | 规格標準尺寸 (mm) | |||||||
 |
||||||||
| Lifting column | Lifting column | Lifting column | Lifting column | Lifting column | Lifting column | Lifting column | Lifting column | Lifting column |
| 代碼選擇: | HTL85 - 电压- 速度 - 行程 - 缩回最小高度 / 伸出最高高度 - 负载 - 安装方式 | |||||||
