GeMinG铬铭的HTL系列升降柱專為符合人體工程學的辦公桌和工作站而設計。使用與GeMinG控制箱和HTS系列控製手柄兼容的多個HTL系列升降柱，可以同步運動並平穩，平穩地控制工作表面。所有HTK系列控制箱的備用電池選項均小於0.1W。我們廣泛的專門為客戶提供滿足其工作環境項目要求所需的解決方案。

Industrial Motion

Document Downloads

PDF Data Sheet

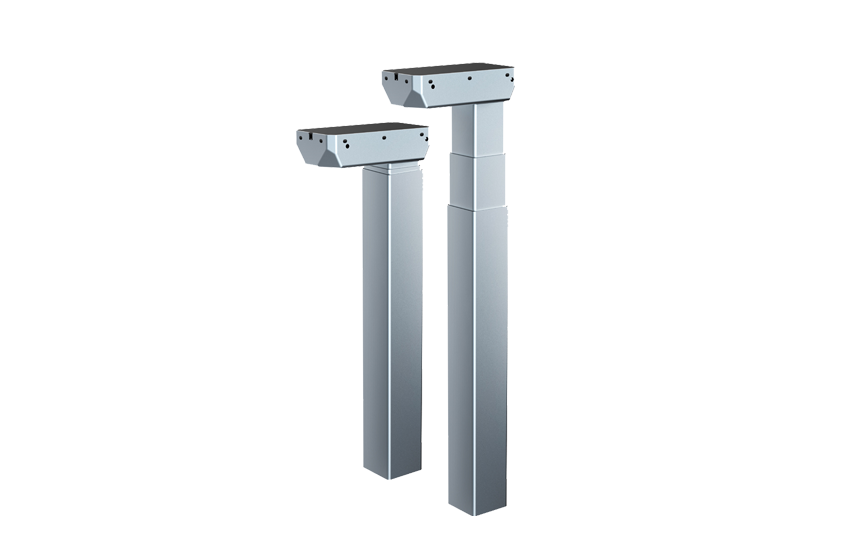

GeMinG's HTL series lifting columns are specially designed for ergonomic desks and workstations. Using multiple HTL series lifting columns compatible with GeMinG control boxes and HTS series control handles can move synchronously and control the work surface smoothly and steadily. The backup battery options of all HTK series control boxes are less than 0.1W. We provide a wide range of solutions for our customers to meet the requirements of their work environment projects.




Product Features


Motor type: permanent magnet DC motor Maximum load: thrust 800N Maximum speed at full load: 38mm/s (800N in the push state) Minimum installation size: 560mm Stroke: 600mm Maximum height: 1210mm Outer tube size (length * width): 70 * 70mm Two-stage outer tube with rectangular shape Color: silver gray Operating temperature range: -45°C~+75°C Full performance operating temperature range: +5°C~+45°C Higher duty cycle (25%) Narrow top and wide bottom configuration

產品數據表

模型	負載(N)	自鎖力 (N)	額定電流(A)	速度 (mm/s)	工作頻率	行程 (mm)	安裝 (mm)	最高(mm)

HT-L86	800	1200	5	38	10%	500	650	1150

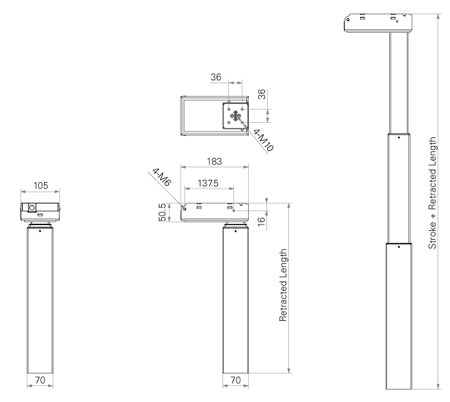

工程圖		规格標準尺寸 (mm)



Lifting column	Lifting column	Lifting column	Lifting column	Lifting column	Lifting column	Lifting column	Lifting column	Lifting column

代碼選擇:		HTL86- 电压- 速度 - 行程 - 缩回最小高度 / 伸出最高高度 - 负载 - 安装方式

HTL86
