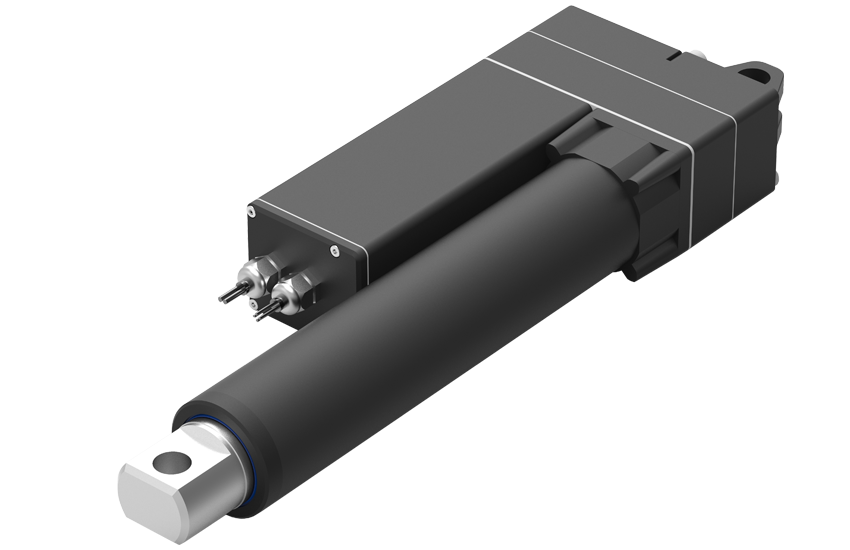

| HTL2 electric linear actuator. It is powerful enough to completely replace hydraulic systems, while the technology is smarter, smaller and more efficient. This model represents a new level of load handling capability with loads up to 20,000 N. With a duty cycle of up to 95%, a stroke of up to 1500 mm, and a speed of up to 120 mm/s, HTL2 will revolutionize your next design project. It has strong impact resistance and can be used in harsh environments such as bumps and shocks. |
| Product Features |
|
Operating Voltage: 24V, 48V DC, or 220V AC Motor Type: Brushless DC Motor Maximum Dynamic/Static Load: 16,000/20,000N Maximum Speed at Full Load: 200.0 mm/s (900N Load) Minimum Speed at Full Load: 7.0 mm/s (16,000N Load) Stroke Range: 100-1200mm Minimum Dimension: Stroke + 250mm or Stroke + 200mm IP Rating: IP67 Operating Temperature Range: -45°C to +75°C Maximum Duty Cycle: 85% Limit Type: Soft Limit, Adjustable, Slow Start/Stop Other Options: Synchronous Control, Integrated Control, CAN Bus Material Options: 304, 316L Stainless Steel, 6061-T6 Aluminum Alloy |

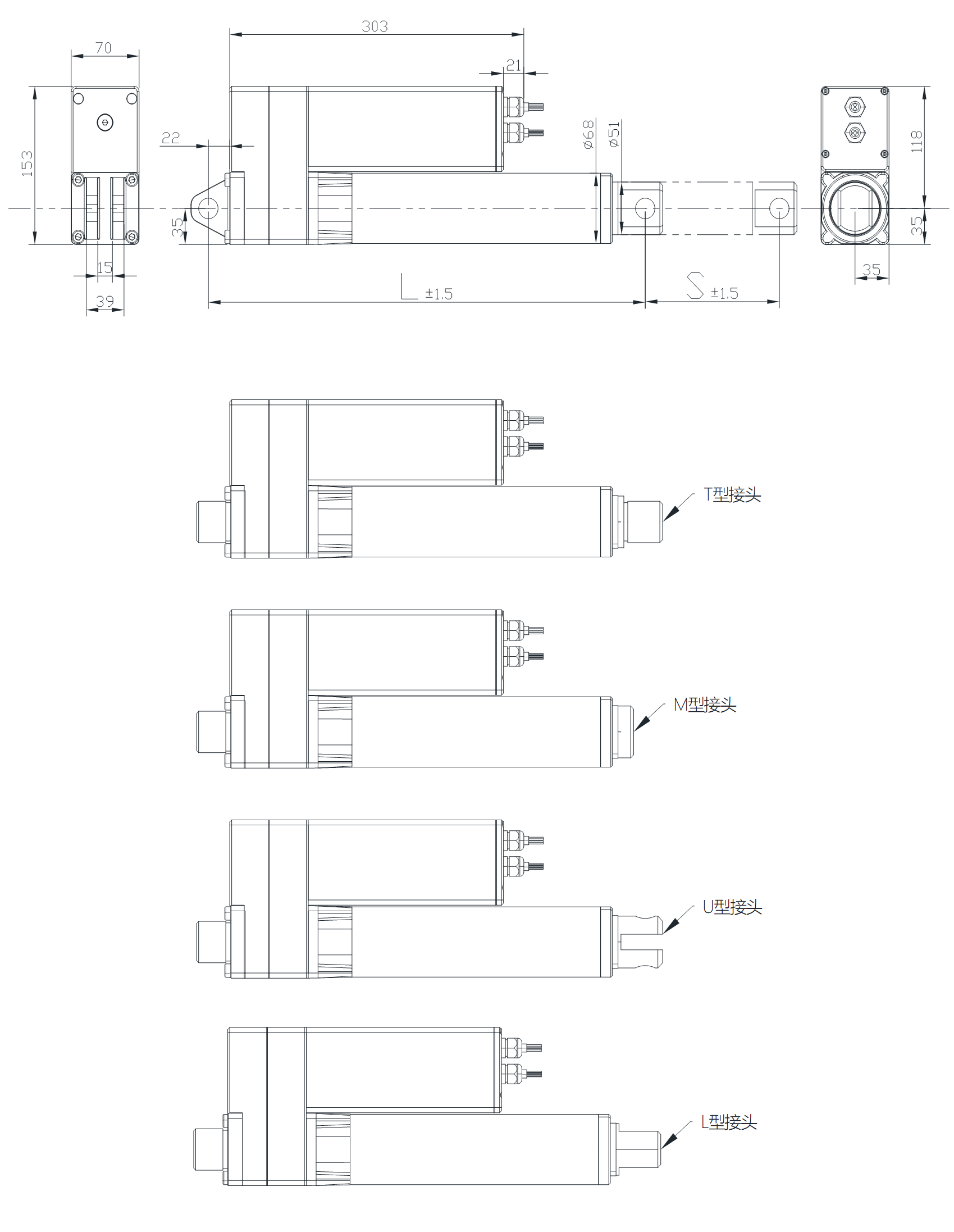

| Drawings | Specifications standard size (mm) | ||||||||
 |
|||||||||
 |
|||||||||
|
S: Stroke L: Retraction length L=Stroke +250MM |
|||||||||
| Linear actuator | Linear actuator | Linear actuator | Linear actuator | Linear actuator | Linear actuator | Linear actuator | Linear actuator | Linear actuator | Linear actuator |
| Model code option rules: |
HTL2 - Voltage - Speed - Stroke - Minimum retracted length / Maximum extended length - Load - Installation method |
||||||||
Product data sheet
| Performance /Model Code |
TL2-*-A |
TL2-*-B | TL2-*-C | TL2-*-D | TL2-*-E | TL2-*-F | TL2-*-G | TL2-*-H | TL2-*-I | TL2-*-J |
|
Input voltage VDC |
24V DC
48V DC
220V AC
|
24V DC
48V DC
220V AC
|
24V DC
48V DC
220V AC
|
24V DC
48V DC
220V AC
|
24V DC
48V DC
220V AC
|
24V DC
48V DC
220V AC
|
24V DC
48V DC
220V AC
|
24V DC
48V DC
220V AC
|
24V DC
48V DC
220V AC
|
24V DC
48V DC
220V AC
|
|
Stroke range MM |
50-600 |
50-600 | 50-700 | 50-800 | 50-800 | 50-800 | 50-900 | 50-1200 | 50-1500 | 50-1500 |
|
Dynamic load N |
20,000 |
20,000 | 14,000 | 12,000 | 11,000 | 8,000 | 6,200 | 4,000 | 1,500 | 900 |
|
Static load N |
25,000 |
25,000 | 16,000 | 14,000 | 12,00 | 1,000 | 8,000 | 5,000 | 1,500 | 900 |
|
No-load speed MM/S |
7 |
7 | 8 | 9 | 10 | 14 | 18 | 28 | 63 | 125 |
|
Full load speed MM/S |
4 | 4 | 6 | 7 | 8 | 12 | 14 | 22 | 50 | 100 |
|
No load/load current A |
2.6/17.5 |
2.6/17.5 | 2.6/17.5 | 2.6/17.5 | 2.6/17.5 | 2.6/17.5 | 2.6/17.5 | 2.6/17.5 | 2.6/17.5 | 2.6/17.5 |
|
Screw type Ball / trapezoid |
Ball screw rod |
Ball screw rod | Ball screw rod | Ball screw rod | Ball screw rod | Ball screw rod | Ball screw rod | Ball screw rod | Ball screw rod | Ball screw rod |
|
Operating temperature ℃ |
-40
+71
|
-40
+71
|
-40
+72
|
-40
+73
|
-40
+74
|
-40
+75
|
-40
+76
|
-40
+77
|
-40
+78
|
-40
+79
|
|
Protection level static / dynamic |
IP67/IP66 |
IP67/IP66 | IP67/IP66 | IP67/IP66 | IP67/IP66 | IP67/IP66 | IP67/IP66 | IP67/IP66 | IP67/IP66 | IP67/IP66 |
|
Actuator weight KG@Stroke |
7.5@100MM
100+0.8KG |
7.5@100MM
100+0.8KG
|
7.5@100MM
100+0.8KG
|
7.5@100MM
100+0.8KG
|
7.5@100MM
100+0.8KG
|
7.5@100MM
100+0.8KG
|
7.5@100MM
100+0.8KG
|
7.5@100MM
100+0.8KG
|
7.5@100MM
100+0.8KG
|
7.5@100MM
100+0.8KG
|
