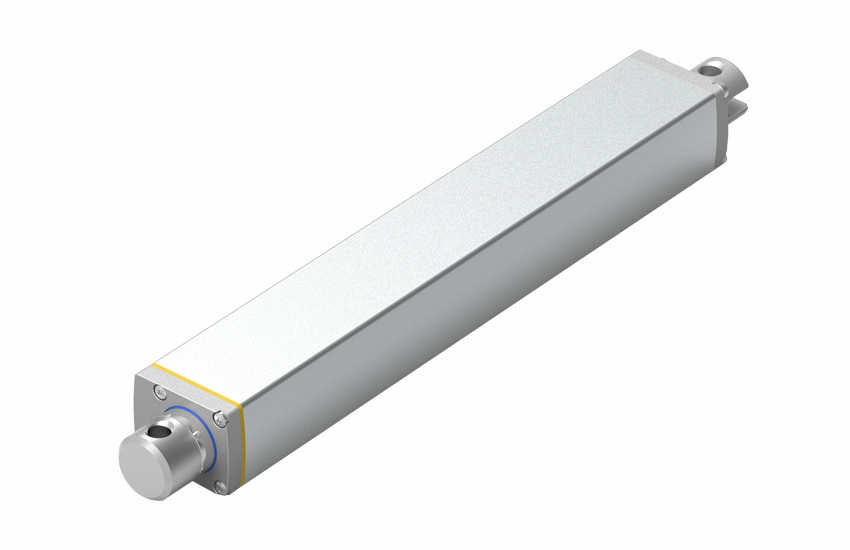

GeMnG's HTK37 series of inline linear actuators are designed for low load industrial applications. It is a powerful product for industrial applications. The compact size allows the HTK37 to install a small space in the application without worrying about its effects. Hall sensors are optional for the HTK37, allowing for synchronization and position feedback, ventilation systems or food and beverage automation equipment as well as other industry performance ranges.
General Features
Model Selection | |||||||||
|
|
|
|
|
|
|
|
|
|
HTK37 Series | Load±10%(N) | Speed±2(mm/S) |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
Max Dynamic Load:N(lbs) | 1,500 | 800 | 500 | 350 | 250 | 150 | 100 | 50 |
|
Max Static Load:kN(lbs) | 1,500 | 800 | 500 | 350 | 250 | 150 | 100 | 50 |
|
No-Load Speed: mm/s | 5 | 10 | 14 | 20.6 | 28 | 41.2 | 70 | 140 |
|
Full-Load Speed: mm/s | 4 | 7.8 | 11.2 | 16.5 | 22.4 | 32.9 | 56 | 112 |
|
|
|
|
|
|
|
||||
HTK37 Series | Stroke ±2(mm) | Mounting dimensions±2(mm) |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Stroke:mm | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
Minimum installation size:mm | 295 | 345 | 395 | 445 | 495 | 545 | 595 | 645 | 690 |
Actuator Weight:kg | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.5 | 3.9 | 4.5 |
|
|
|
|
|
|
|
|
|
|

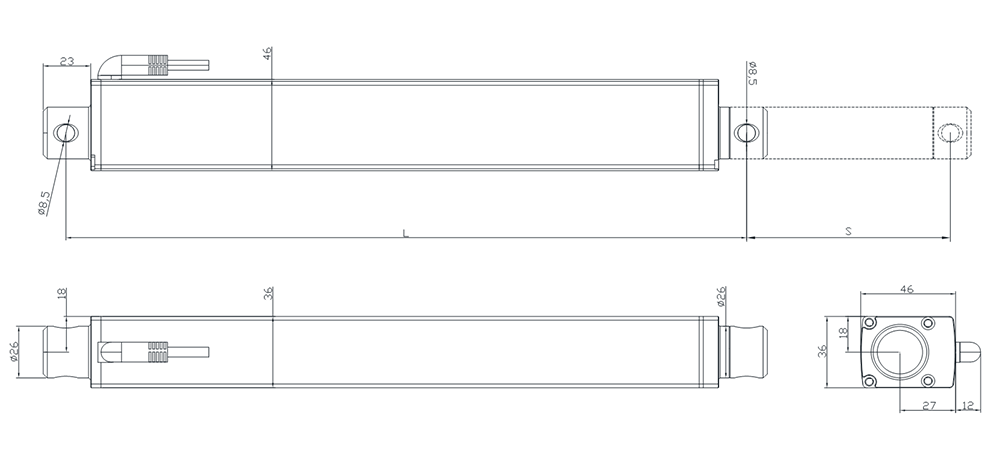

Drawing | Standard Dimension (mm) | ||||||||
|
|||||||||
|
|||||||||
|
|||||||||
Code selection: | HTK37 - voltage - speed - stroke - minimum installation size / maximum installation size - load |
