HTB3

Series

Lifting column

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

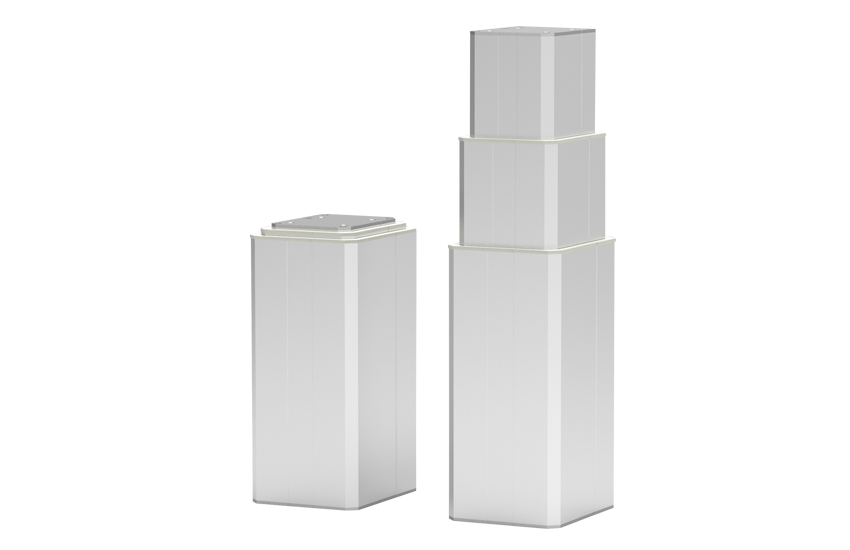

HT-B3 linear actuator column (GeMinG) one Column product development for medical and work environments, such as hospital beds, nursing home beds, treatmentunitsand height adjustable desk applications. The two outer tube HT-B3 formula canprovideastable operation of the lift, and can provide minimal dimensions and longstroke selection ... and so on...
Product Features
Motor type: permanent magnet DC motor
Voltage: 12V DC, 24V DC, 36V DC, 48V DC
Maximum self-locking force: 6,000N/Limited to thrust
Maximum load: 4,000N/Limited to thrust
Maximum tension: 2,000N/Maximum tension
Maximum speed at full load: 35 mm / s (load 1,500N)
The slowest speed at full load: 17.5mm/s (load 4,000N)
Stroke: 200~1200mm
Minimum size: Stroke /2 + 200mm
Maximum outer tube size: three sections, 144*144mm, square
Color: silver gray or customized
IP rating: IP54
Operating temperature range: -45°C~+75°C
Full performance operating temperature range: +5°C~+45°C
Higher duty cycle (25%)
Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
High-strength metal zinc alloy housing protects motors and gears
Limit switch (built-in: not adjustable)

Model Selection


HTB3 Series Load±10%(N) Speed±2(mm/S)



Load

2,000









Speed

15








HTB3 Series Stroke ±2(mm) Mounting dimensions±2(mm)


Stroke

200

250

300

350

400

450


500

600

Size

250

275

300

325

350

375


400

450

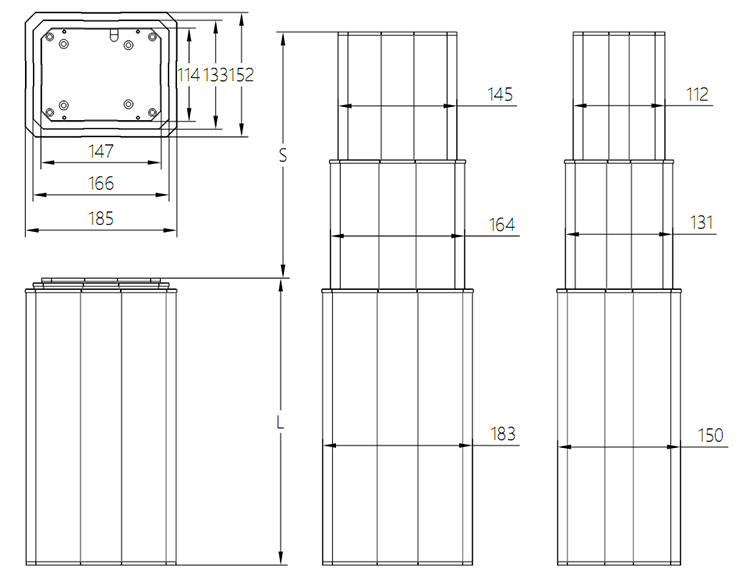

Drawing



                    Standard Dimension (mm)




S: Stroke
L: Retracted length
L=Stroke/2 +150mm
