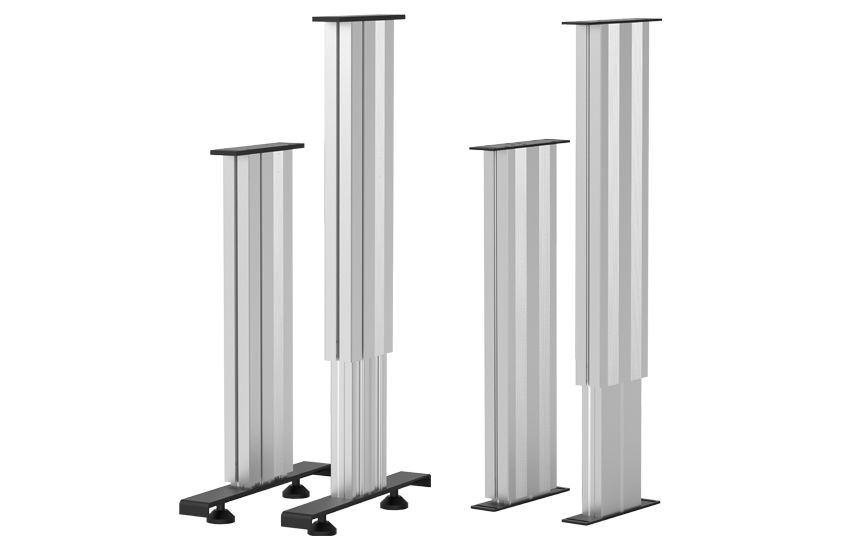

HTE2 linear actuator column (GeMinG) one Column product development for medical and work environments, such as hospital beds, nursing home beds, treatmentunitsand height adjustable desk applications. The two outer tube HTB5 formula canprovideastable operation of the lift, and can provide minimal dimensions and longstroke selection ... and so on... |
|||||||||
| Product Features | |||||||||
|
Motor type: permanent magnet DC motor
Voltage: 12V DC, 24V DC, 36V DC, 48V DC Maximum self-locking force: 3,000N/Limited to thrust Maximum load: 3,000N/Limited to thrust Maximum tension: 1,000N/Maximum tension Maximum speed at full load: 23 mm/s (load 1,000N) The slowest speed at full load: 5.5mm/s (load 3,000N) Stroke: 100~900mm Minimum size: stroke + 180 mm (limited to 300 mm stroke or less) Minimum size: stroke + 200 mm (over 300 mm stroke or more) Maximum outer tube size: two sections, 180*65mm, square Color: silver gray or customized IP rating: IP54 Operating temperature range: -45°C~+75°C Full performance operating temperature range: +5°C~+45°C Higher duty cycle (25%) Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system High-strength metal zinc alloy housing protects motors and gears Limit switch (built-in: not adjustable) |
|||||||||
| Model Selection |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
| HTE2 Series | Load±10％（N） | Speed±2（mm/S） |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|||
| Load | 3,000 | 2,000 | 1,500 | 800 |
|
|
|
|
|
| Speed | 5.5 | 7.5 | 10 | 23 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HTE2 Series | Stroke ±2（mm) | Mounting dimensions±2（mm） |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
| Stroke | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Size | 270 | 320 | 370 | 420 | 470 | 550 | 600 | 650 | 700 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

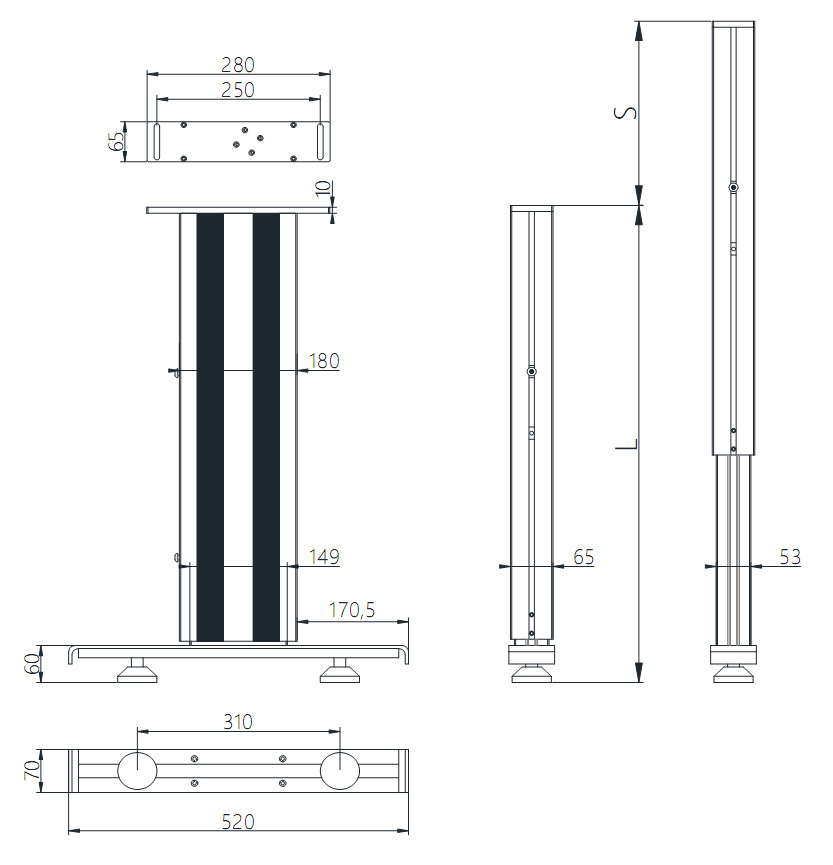

| Drawing |
|
Standard Dimension (mm) |
|
|
|
|
|
||
|
|
|||||||||
S: Stroke
L: Retracted length
L=Stroke +180mm
