HTA2

Series

Lifting column

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

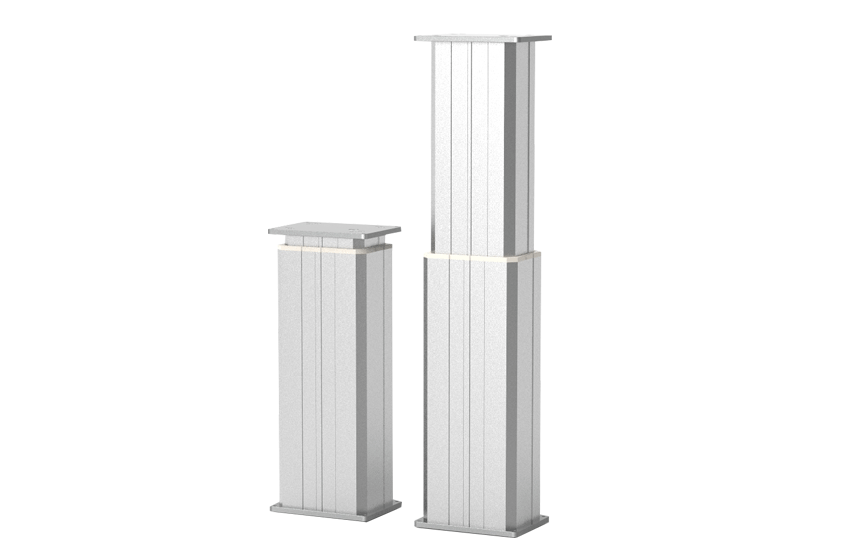

HTA2 linear lifting column is a column product development designed by GeMinG Chromium Transmission for medical and working environments, such as hospital beds, nursing beds, treatment units and height-adjustable desktop applications. The combination of two or more HTA2 can provide the best operation of linear synchronous lifting, which is suitable for industrial environments, such as the design of workbenches, screens or TV lifting columns. And can provide the smallest installation size and longer travel options. And can provide minimum size and long stroke options... etc.,
Product Features
Motor type: permanent magnet DC motor
Voltage: 12V DC, 24V DC, 36V DC, 48V DC
Maximum self-locking force: 10,000N/Limited to thrust
Maximum load: 8,000N/Limited to thrust
Maximum tension: 2,000N/Maximum tension
Maximum speed at full load: 18 mm/s (load 1,500N)
The slowest speed at full load: 3.5mm/s (load 8,000N)
Stroke: 100~900mm
Minimum size: stroke + 180 mm (limited to 300 mm stroke or less)
Minimum size: stroke + 200 mm (over 300 mm stroke or more)
Maximum outer tube size: two sections, 193*141mm, rectangular
Color: silver gray or customized
IP rating: IP54
Operating temperature range: -45°C~+75°C
Full performance operating temperature range: +5°C~+45°C
Higher duty cycle (25%)
Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
High-strength metal zinc alloy housing protects motors and gears
Limit switch (built-in: not adjustable)

Model Selection










HTA2 Series Load±10%(N) Speed±2(mm/S)













Max Dynamic Load:N(lbs) 8,000(1,776) 6,000(1,332) 4,000(880) 2,000(440) 1,500(330) 1,000(220)


Max Static Load:N(lbs) 8,000(1,776) 6,000(1,332) 4,000(880) 1,500(330) 1,000(220) 800(177)


No-Load Speed: mm/s 3.0 4.2 8.1 12 22 33


Full-Load Speed: mm/s 2.3 3.5 7.1 10 18 24








HTA2 Series Stroke ±2(mm) Mounting dimensions±2(mm)












Stroke:mm 100 150 200 250 300 350 400 450 500
Minimum installation size:mm 280 330 380 430 500 550 600 650 700
Actuator Weightkg 7 7.5 8 9 10.5 11 12 13 14

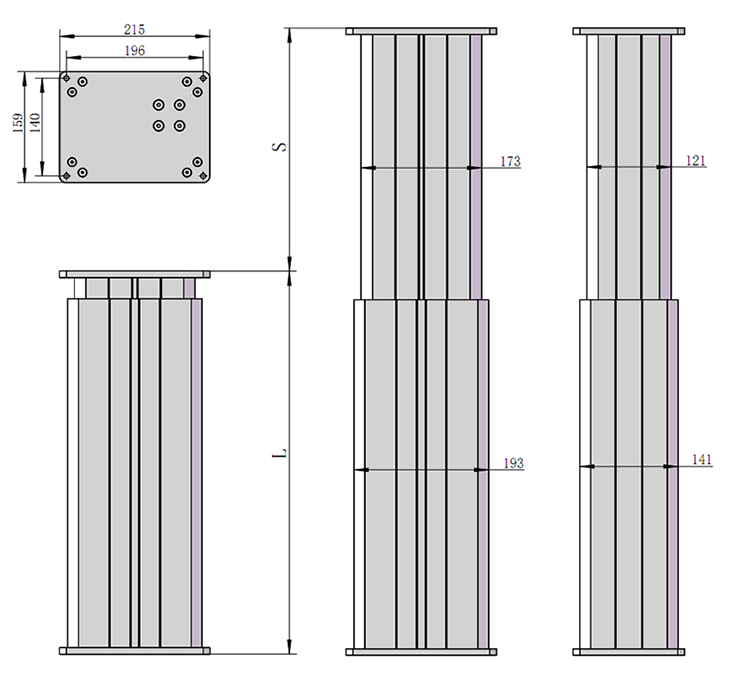

Drawing Standard Dimension (mm)





S: Stroke

L: Retracted length
L=Stroke +200mm

Code selection:  HTA2 - voltage - speed - stroke - minimum installation size / maximum installation size - load
