HT-B2 linear actuator column (GeMinG) one Column product development for medical and work environments, such as hospital beds, nursing home beds, treatmentunitsand height adjustable desk applications. The two outer tube HT-B2 formula canprovideastable operation of the lift, and can provide minimal dimensions and longstroke selection ... and so on... |
|||||||||
| Product Features | |||||||||
|
Motor type: permanent magnet DC motor
Voltage: 12V DC, 24V DC, 36V DC, 48V DC Maximum self-locking force: 6,000N/Limited to thrust Maximum load: 4,000N/Limited to thrust Maximum tension: 1,000N/Maximum tension Maximum speed at full load: 18 mm/s (load 1,500N) The slowest speed at full load: 3.5mm/s (load 6,000N) Stroke: 100~900mm Minimum size: stroke + 180 mm (limited to 300 mm stroke or less) Minimum size: stroke + 200 mm (over 300 mm stroke or more) Maximum outer tube size: two sections, 144*144mm, square Color: silver gray or customized IP rating: IP54 Operating temperature range: -45°C~+75°C Full performance operating temperature range: +5°C~+45°C Higher duty cycle (25%) Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system High-strength metal zinc alloy housing protects motors and gears Limit switch (built-in: not adjustable) |
|||||||||
| Model Selection |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
| HTB2 Series | Load±10％（N） | Speed±2（mm/S） |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|||
| Load | 4,000 | 3,000 | 2000 | 1000 |
|
|
|
|
|
| Speed | 5.5 | 7.5 | 10 | 22 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HTB2 Series | Stroke ±2（mm) | Mounting dimensions±2（mm） |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
| Stroke | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Size | 250 | 300 | 350 | 400 | 450 | 500 | 580 | 630 | 680 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

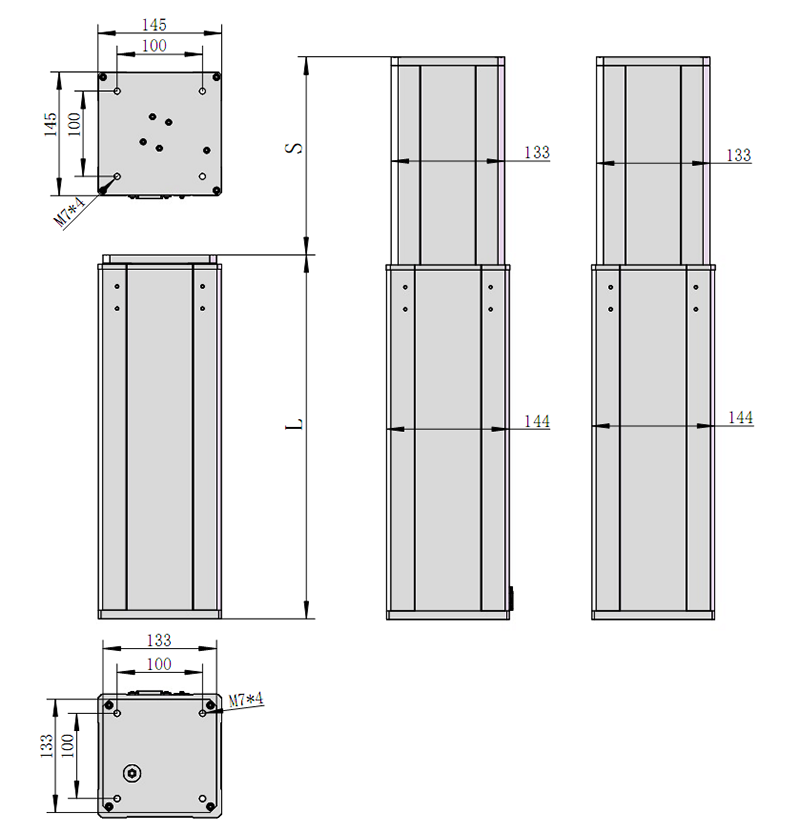

| Drawing |
|
Standard Dimension (mm) |
|
|
|
|
|
||
|
|
|||||||||
S: Stroke
L: Retracted length
L=Stroke +200mm
