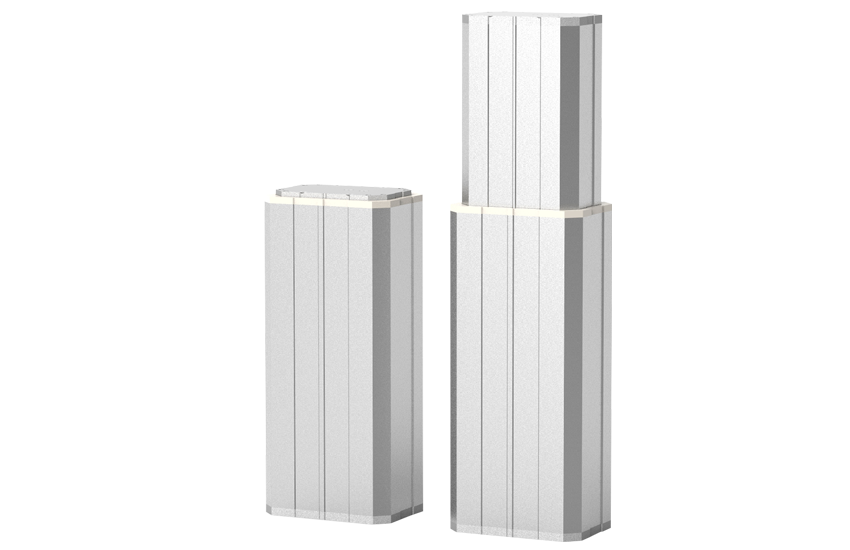

| HTA1 linear lifting column is a column product development designed by GeMinG Chromium Transmission for medical and working environments, such as hospital beds, nursing beds, treatment units and height-adjustable desktop applications. The combination of two or more HTA1 can provide the best operation of linear synchronous lifting, which is suitable for industrial environments, such as the design of workbenches, screens or TV lifting columns. And can provide the smallest installation size and longer travel options. And can provide minimum size and long stroke options... etc., | |||||||||
| Product Features | |||||||||
|
Motor type: permanent magnet DC motor
Voltage: 12V DC, 24V DC, 36V DC, 48V DC Maximum self-locking force: 8,000N/Limited to thrust Maximum load: 6,000N/Limited to thrust Maximum tension: 2,000N/Maximum tension Maximum speed at full load: 18 mm/s (load 1,500N) The slowest speed at full load: 3.5mm/s (load 8,000N) Stroke: 100~900mm Minimum size: stroke + 180 mm (limited to 300 mm stroke or less) Minimum size: stroke + 200 mm (over 300 mm stroke or more) Maximum outer tube size: two sections, 173*121mm, rectangular Color: silver gray or customized IP rating: IP54 Operating temperature range: -45°C~+75°C Full performance operating temperature range: +5°C~+45°C Higher duty cycle (25%) Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system High-strength metal zinc alloy housing protects motors and gears Limit switch (built-in: not adjustable) |
|||||||||
| Model Selection | |||||||||
|
|
|
|
|
|
|
|
|
|
|
| HTA2 Series | Load±10％（N） | Speed±2（mm/S） |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
| Max Dynamic Load：N(lbs) | 8,000(1,776) | 6,000(1,332) | 4,000(880) | 2,000(440) | 1,500(330) | 1,000(220) |
|
|
|
| Max Static Load：N(lbs) | 8,000(1,776) | 6,000(1,332) | 4,000(880) | 1,500(330) | 1,000(220) | 800(177) |
|
|
|
| No-Load Speed: mm/s | 3.0 | 4.2 | 8.1 | 12 | 22 | 33 |
|
|
|
| Full-Load Speed: mm/s | 2.3 | 3.5 | 7.1 | 10 | 18 | 24 |
|
|
|
|
|
|
|
|
|
|
||||
| HTA2 Series | Stroke ±2（mm) | Mounting dimensions±2（mm） |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
| Stroke：mm | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Minimum installation size:mm | 280 | 330 | 380 | 430 | 500 | 550 | 600 | 650 | 700 |
| Actuator Weight：kg | 7 | 7.5 | 8 | 9 | 10.5 | 11 | 12 | 13 | 14 |
|
|
|
|
|
|
|
|
|
|
|

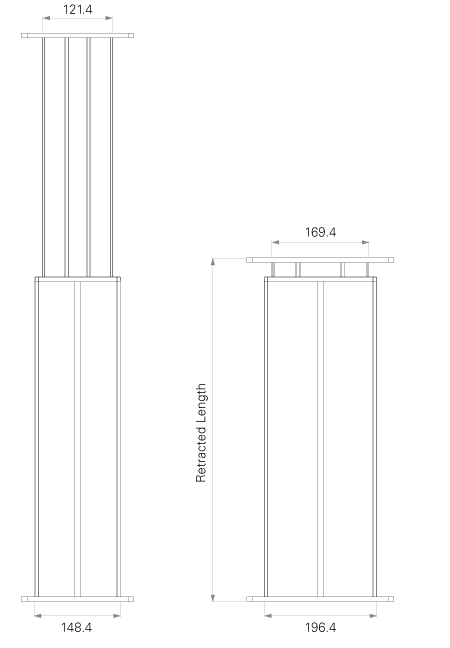

| Drawing | Standard Dimension (mm) | ||||||||
|
|
|||||||||
|
|
|||||||||
|
|||||||||
| Code selection: |
HTA2 - voltage - speed - stroke - minimum installation size / maximum installation size - load |
||||||||
