HTX3

Series

Lifting column

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

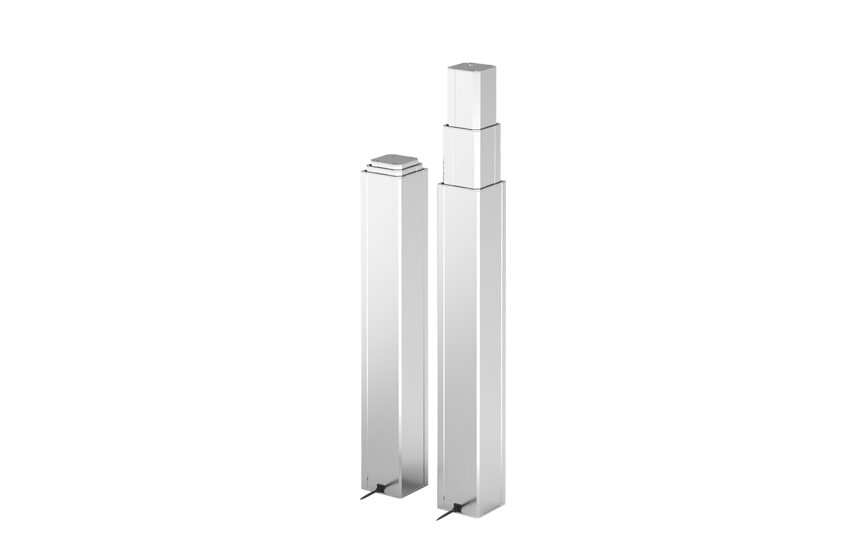

HT-B3 linear actuator column (Ge Ming) one Column product development for medical and work environments, such as hospital beds, nursing home beds, treatmentunitsand height adjustable desk applications. The two outer tube HT-B3 formula canprovideastable operation of the lift, and can provide minimal dimensions and longstroke selection ... and so on...

Notice: HT-B3 will be ready for sale in August, 2020


General Features

  • Voltage of motor: 12V DC, 24V DC,
  • Maximum push force: 2,000N (only thrust),
  •                                1,000N(pull)
  • Maximum speed at full load: 12mm/s ( load 500N)
  • The slowest speed at full load: 5mm / s (load 2,000N)
  • Stroke: 20~800mm
  • Minimum dimensions: Stroke /2+ 150 mm (limited to 400 mm stroke or less)
  •                                  Stroke /2+ 180 mm (400 mm stroke above)
  • Color: Silver gray
  • IP rating: IP54D
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • Other options: Hall sensor
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)



Model Selection


HTX3 Series Load±10%(N) Speed±2(mm/S)



Load

2,000

1,000

500







Speed

5 8

12







HTX3 Series Stroke ±2(mm) Mounting dimensions±2(mm)


Stroke

50

100

150

200

250

300

350

400

450

Size

200

250

300

350

400

450

500

580

630


Drawing

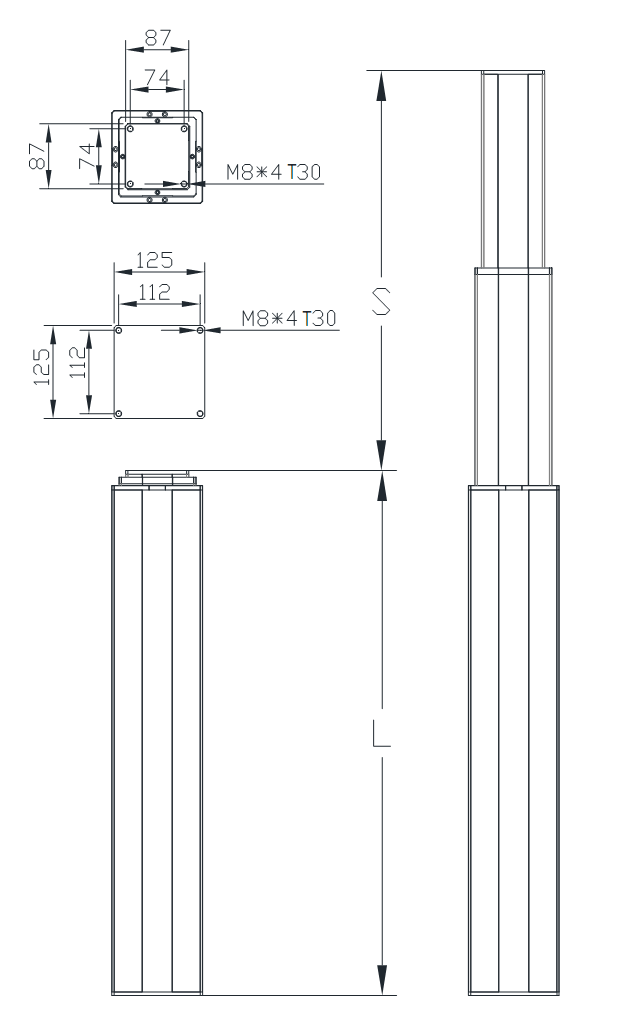

                    Standard Dimension (mm)
