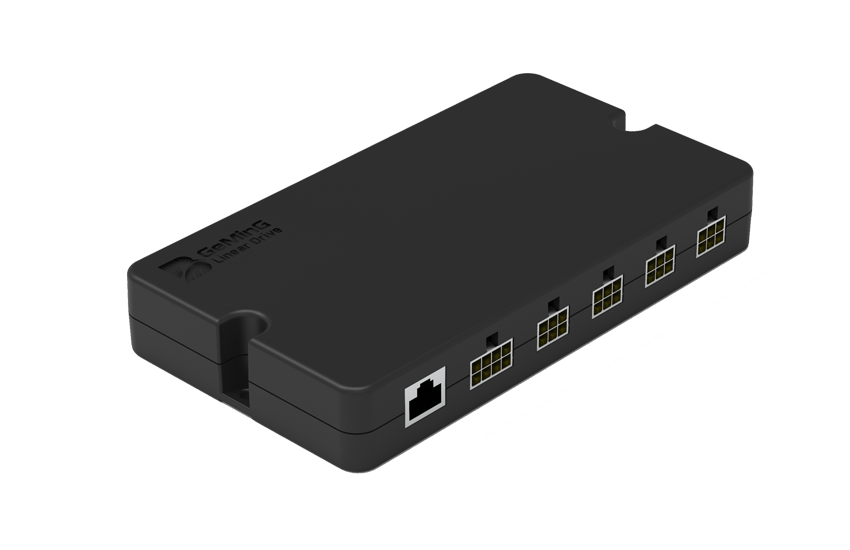

HTT4W controller is a dc controller specially designed for 4-motor synchronous lifting products. Through manual or wireless operation,

height limit adjustment and system lock be realized. It ensures the synchronization and smooth operation of the lifting system.

It can control 4 motors at the same time, start slow stop, self-learning mechanical position. Electric memory, 4 groups of high storage,

LED digital display, multiple protections, overcurrent protection, locked rotor protection, excessive protection, low voltage protection,

power failure protection, multiple open circuit protection, motor, Hall, hand controller, operation Simple, precise positioning; ultra-low decibel,

up and down freely, stable operation; ultra-low power consumption, energy saving and environmental protection.

Product Features
  • Compact High Power Controller
    Control options: handle control, 485 communication control
    Number of control motors: 4
    Input voltage: 12~29V DC
    Output voltage: 12~29V DC
    Colour: Black
    Shell material: flame retardant ABS
    Current limit, overload protection
    Overheating protection
    Short circuit protection
    Insulation function
    Soft start soft stop function
    Standby power consumption: 1~2w
    Power cord: stripped wire, 3 meters
Use
  • Duty Cycle:10%;2min on/18min off
  • Ambient temperature:+5℃~+40℃

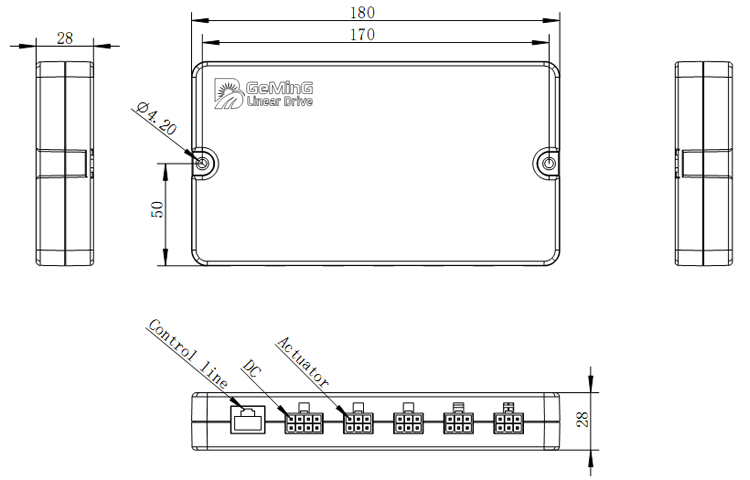

Drawing Standard Dimension (mm): 180*100*28MM
