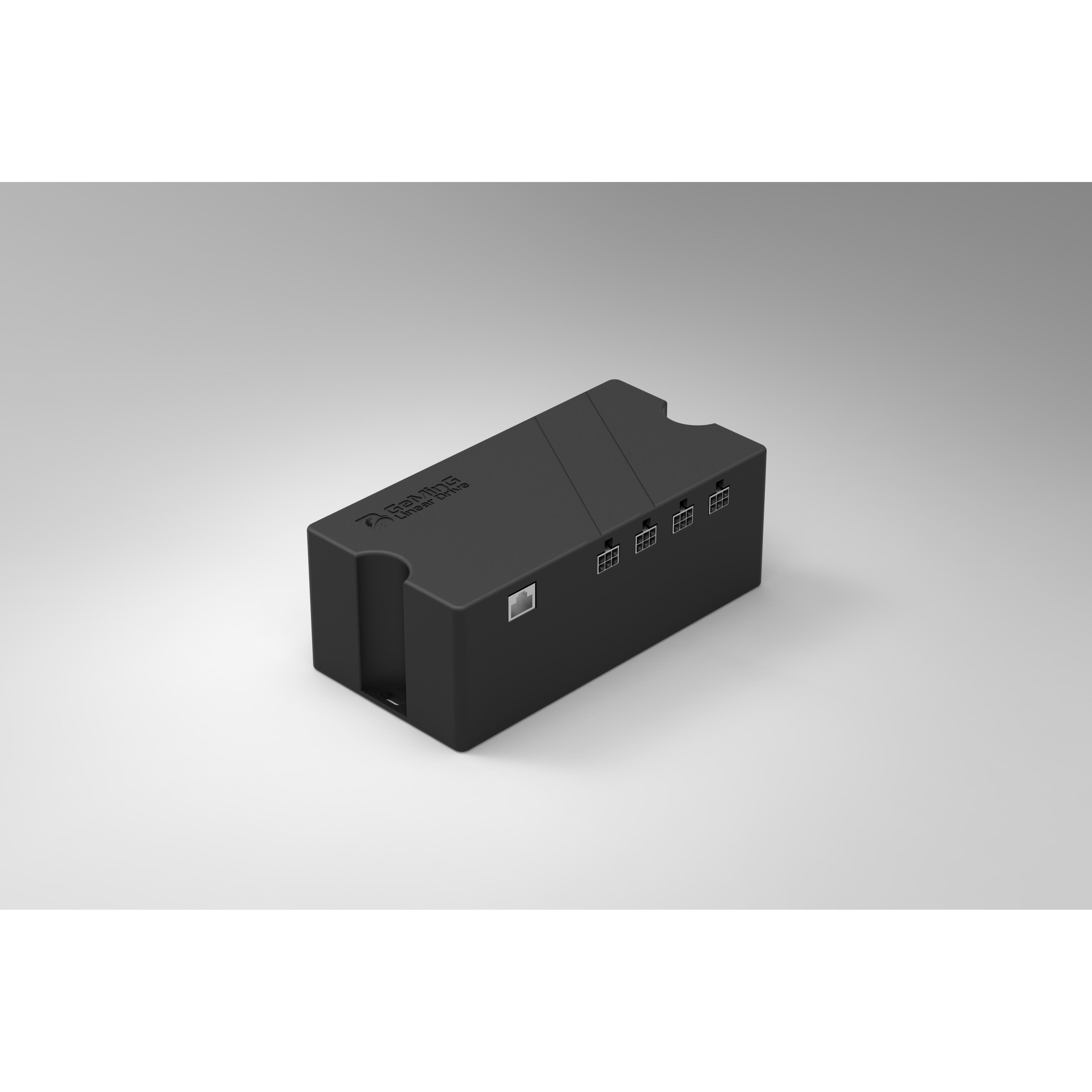

HTT4 controller is a controller designed specifically for four-motor lifting products. Through manual operation, height restrictions, system lock-in

and anti-collision sensitivity(optional) can be achieved. It can be used for all GeMinG office series lifting columns. It ensures the synchronization and

smooth operation of the lifting system, and can be soft stopped and soft stopped. All controllers have a resistance recovery function(optional)

that prevents objects from being squeezed or bumped during lifting.

Product Features
  • Compact high-power controller
    Control options: handset control, 485 communication control
    Number of controlled motors: 4
    Input voltage: 110~240V AC
    Output voltage: 24~29V DC
    Colour: Black
    Shell material: flame-retardant ABS
    Current limit, overload protection
    Overheating protection
    Short circuit protection
    Insulation function
    Soft start and soft stop function
    standby power consumption: 1w
    The power cord is plug-in type (standard cord length is 3 meters), and the power plug can be chosen arbitrarily, applicable to the whole worldThe power cord is plug-in type, standard cord length is 3 meters), and the power plug can be chosen arbitrarily, applicable to the whole world
    Comes with independent mounting holes, which can be installed independently on application equipment.

Use
  • Working duty cycle: 10%; 2 minutes on, 18 minutes off
    Working temperature: +5℃~+40℃
    Passed IEC60601, Rohs certification

Drawing Standard Dimension (mm)
