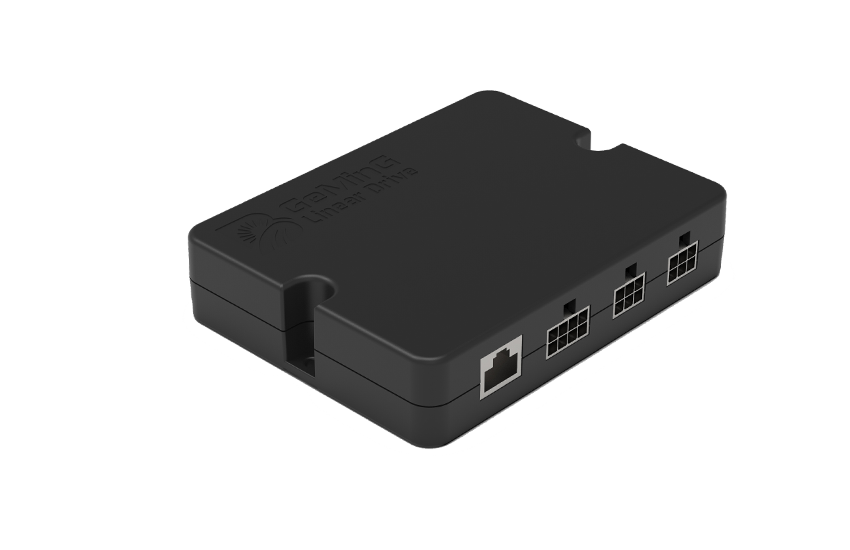

HTT2W controller is a controller specially designed for 2-motor synchronous lifting products. Through manual or wireless operation, height limit adjustment, system lock and anti-collision sensitivity can be realized. It ensures the synchronization and smooth operation of the lifting system. All controllers have a resistance recovery function, which can prevent objects from being squeezed or hit during the lifting process. It can control 2 motors at the same time, start slow stop, self-learning mechanical position, and drop. Electric memory, rebound in case of resistance, 4 groups of high storage, LED digital display, multiple protections, overcurrent protection, locked rotor protection, excessive protection, low voltage protection, power failure protection, multiple open circuit protection, motor, Hall, hand controller, operation Simple, precise positioning; ultra-low decibel, the king of mute; up and down freely, stable operation; ultra-low power consumption, energy saving and environmental protection.
Product Features
  • Compact High Power Controller
    Control options: handle control, 485 communication control
    Number of control motors: 2
    Input voltage: 12v, 24~36V DC
    Output voltage: 24V DC
    Colour: Black
    Shell material: flame retardant ABS
    current limit, overload protection
    Overheating protection
    Short circuit protection
    Insulation function
    Soft start soft stop function
    Ultra-low standby power consumption, in line with environmental standards
    The power cord is plug-in type (the standard length is 2 meters), and the power plug can be selected arbitrarily, which is suitable for the whole world
    Comes with independent mounting holes, can be independently installed on the application equipment
    Ultra-low standby power consumption, in line with environmental standards
    Duty cycle: 10%
Use
Duty cycle: 10%; continuous use for 2 minutes, rest for 18 minutes
Operating ambient temperature: +5°C~+40°C
Passed IEC60601, Rohs certification

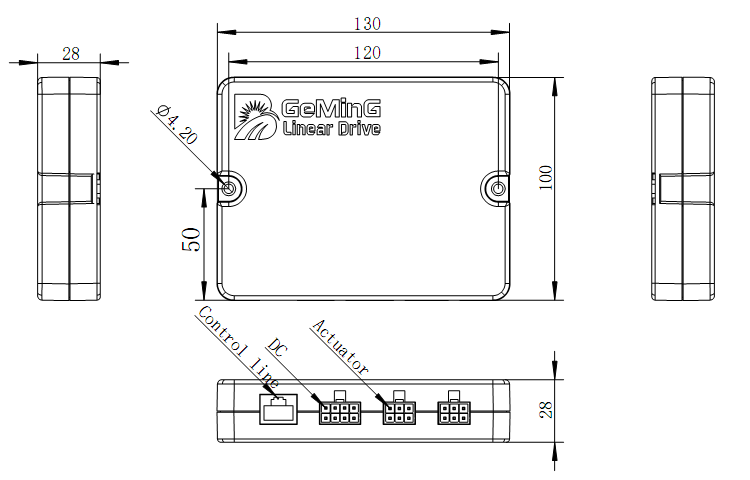

Drawing Standard Dimension (mm)
