HTT2J

Series

Control Box

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

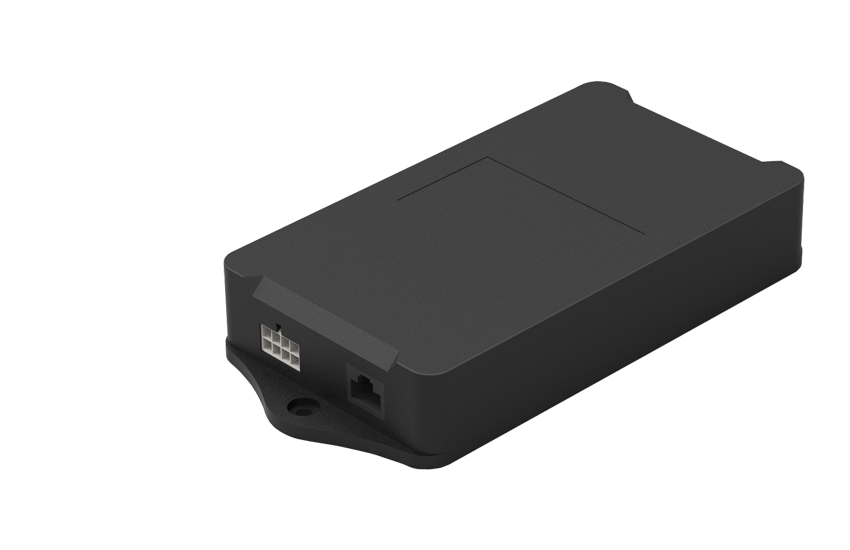

The HTT2 controller is a controller specially designed for the intelligent control of a single motor. Through manual or wireless operation, height limit adjustment, system lock and anti-collision sensitivity can be realized. It ensures the synchronization and smooth operation of the lifting system. All controllers have a resistance recovery function, which can prevent objects from being squeezed or hit during the lifting process, start and stop, self-learning mechanical position, power-down memory, and rebound when resistance occurs. 4 groups of high storage, LED digital display, multiple protections, overcurrent protection, locked rotor protection, excessive protection, low voltage protection, power failure protection, multiple open circuit protection, motor, Hall, hand controller, simple operation, precise positioning; ultra-low Decibel, the king of silence; up and down freely, stable operation; ultra-low power consumption, energy saving and environmental protection.
Product Features
  • 緊湊型高功率控制器
  • 控制選項:手柄控制、485通訊控制
  • 控制電機的數量:2
  • 輸入電壓:110〜240V AC
  • 輸出電壓:24〜29V DC
  • 顏色:黑色
  • 外殼材料:阻燃ABS
  • 電流限制,過載保護
  • 過熱保護
  • 短路保護
  • 绝缘功能
  • 軟啟動軟停功能
  • 超低待機功耗,符合環保標準
  • 電源線為接插式(標準線長3米),電源插頭可任意選擇,適用於全球
  • 自帶獨立安裝孔,能獨立安裝於應用設備上
  • 超低待機功耗,符合環保標準
  • 工作週期:高達10%
Use
  • 工作佔空比:10%;連續使用2分鐘,休息18分鐘
  • 使用環境溫度:+5℃~+40℃
  • 通過IEC60601,Rohs 認證

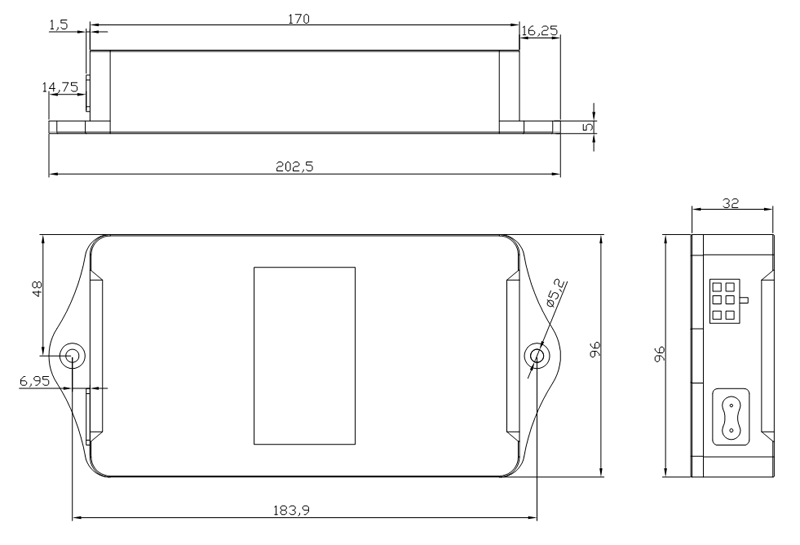

Drawing Standard Dimension (mm)
