HTK1电动推杆控制盒，推杆控制盒，220V直流推杆控制器

Industrial Motion

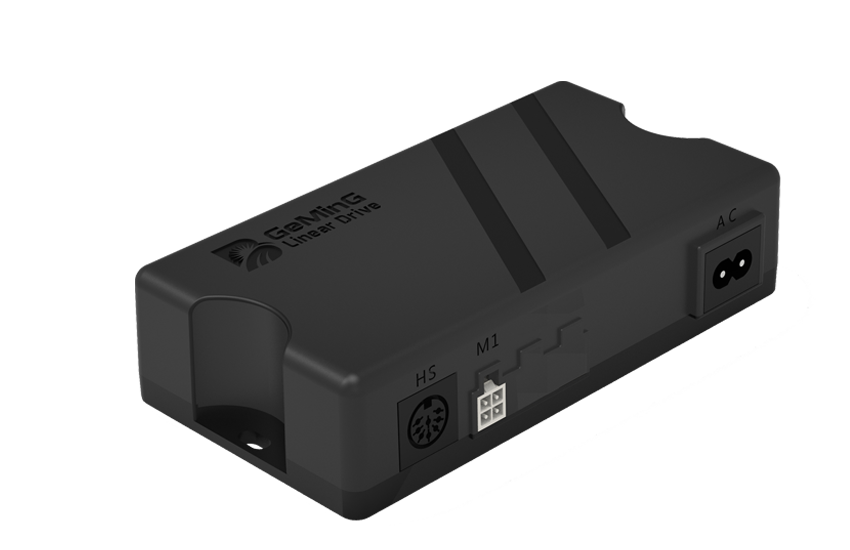

HTK1 controller is a controller specially designed for a motor lifting product. Through manual operation, height restrictions, system lock-in and anti-collision sensitivity can be achieved. It can be used for all GeMinG office series lifting columns. It ensures the synchronization and smooth operation of the lifting system, and can be soft stopped and soft stopped. All controllers have a resistance recovery function that prevents objects from being damaged by squeezing or impact during lifting..


Product Features


緊湊型高功率控制器控制電機的數量：1 顏色：黑色外殼材料：阻燃ABS 電流限制，過載保護輸入電壓：100〜240VAC 輸出電壓：24VDC 電源線為接插式（標準線長3米），電源插頭可任意選擇，適用於全球自帶獨立安裝孔，能獨立安裝於應用設備上超低待機功耗，符合環保標準工作週期：高達10％

Use

工作佔空比：10%；連續使用2分鐘，休息18分鐘使用環境溫度：+5℃~+40℃ 通過IEC60601,Rohs 認證
