HTK3 Independent control box-Product-Industrial linear actuator price|Furniture-Heavy agricultural machine linear actuator manufacturer|GeMinG Drive

Industrial Motion

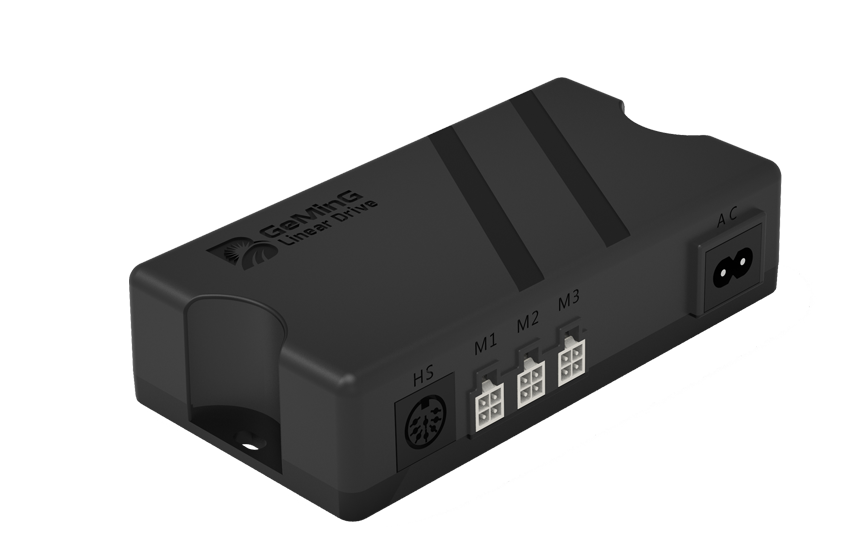

The HTK3 controller is a controller specially designed for motor lifting products. Through manual operation, height limit, system lock and anti-collision sensitivity can be achieved. It can be used for all GeMinG lifting columns and electric push rods. It ensures the smooth operation of the lifting system and is used in various areas of the market, such as furniture, medical and industrial applications, and can prevent items from being crushed or impacted during the lifting process.


Product Features


緊湊型高功率控制器控制電機的數量：3 顏色：黑色外殼材料：阻燃ABS 電流限制，過載保護輸入電壓：100〜240VAC 輸出電壓：24VDC 電源線為接插式（標準線長3米），電源插頭可任意選擇，適用於全球自帶獨立安裝孔，能獨立安裝於應用設備上超低待機功耗，符合環保標準工作週期：高達10％

Use

工作佔空比：10%；連續使用2分鐘，休息18分鐘使用環境溫度：+5℃~+40℃ 通過IEC60601,Rohs 認證
